ANT-GNCP-C25L125100
ActiveTE Connectivity AMP Connectors

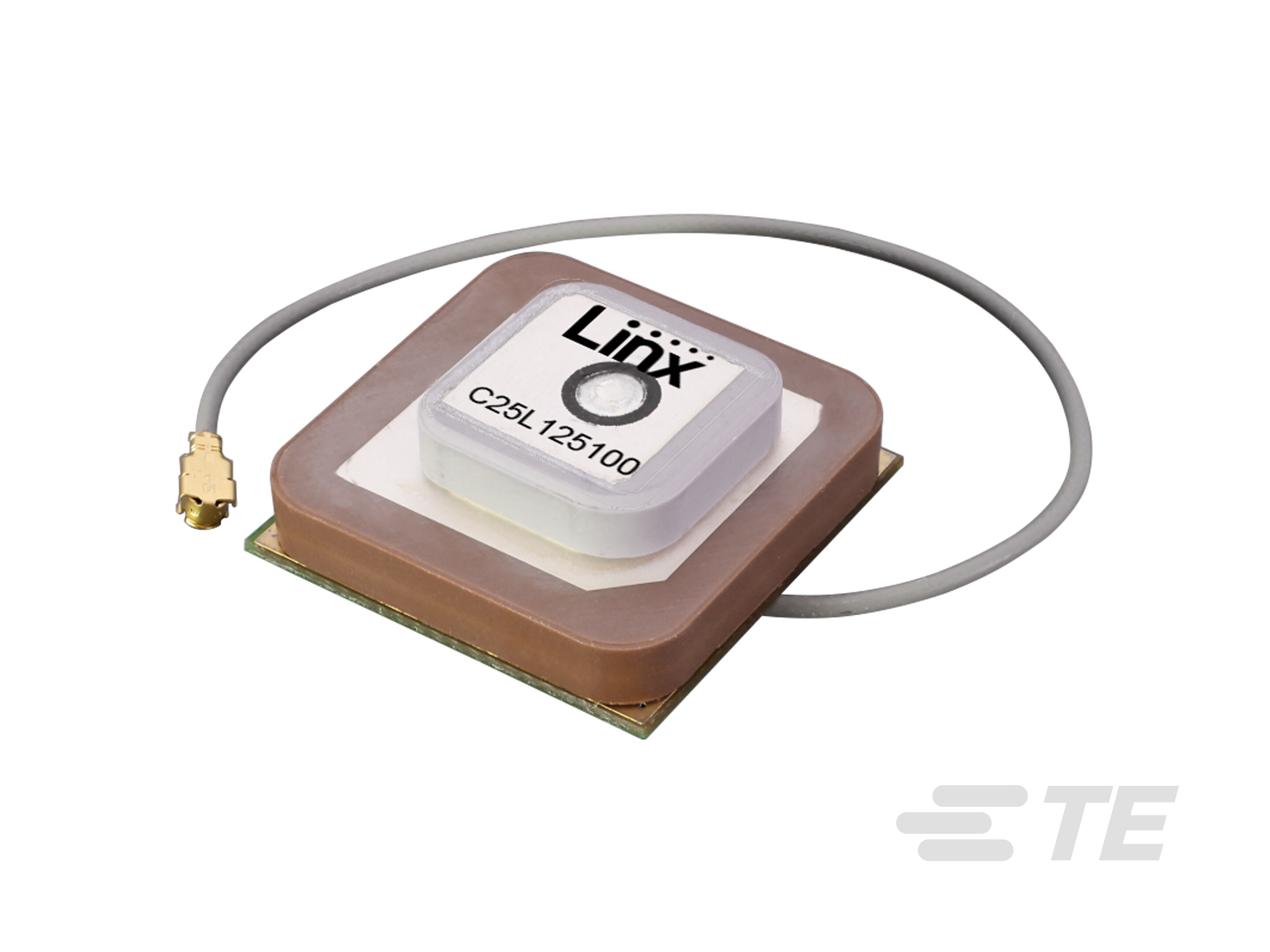

ANTENNA GNSS L1L2L5 25X25 LNA 1.13 UFL
ANT-GNCP-C25L125100
ActiveTE Connectivity AMP Connectors
ANTENNA GNSS L1L2L5 25X25 LNA 1.13 UFL
Description
General part information
ANT-GNCP-C25L125100
Patch Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Adhesive Mount, MHF / U.FL / UMCC, Directional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNCP-C25L125100 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | NavIC, BEIDOU, GLONASS, QZSS, IRNSS, GPS, COMPASS, Galileo |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 1.227GHz, 1.575GHz, 1.601GHz, 1.561GHz, 1.202GHz, 1.176GHz, 1.248GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.189 GHz |
| Frequency Range (Band 1) Minimum | 1.1164 GHz |
| Frequency Range (Band 2) Maximum | 1.25 GHz |
| Frequency Range (Band 2) Minimum | 1.197 GHz |
| Frequency Range (Band 3) Maximum | 1.606 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Gain | 29.1 dBi, 26.6 dBi, 18.2 dBi, 23.9 dBi, 26.9 dBi, 25.3 dBi, 10.4 dBi |
| Height (Max) | 0.472 in |
| Mounting Type | Surface Mount |
| Number of Bands | 7 |
| Return Loss | -17.5dB, -16.4dB, -15.4dB, -15.6dB, -8.4dB, -13.2dB |
| Return Loss | -13.2 dB, -15.4 dB, -17.5 dB, -16.4 dB, -8.4 dB, -15.6 dB |
| RF Family/Standard | Navigation |
| Termination | U.FL |
| VSWR | 1.3, 2.2, 1.6, 1.4 |
