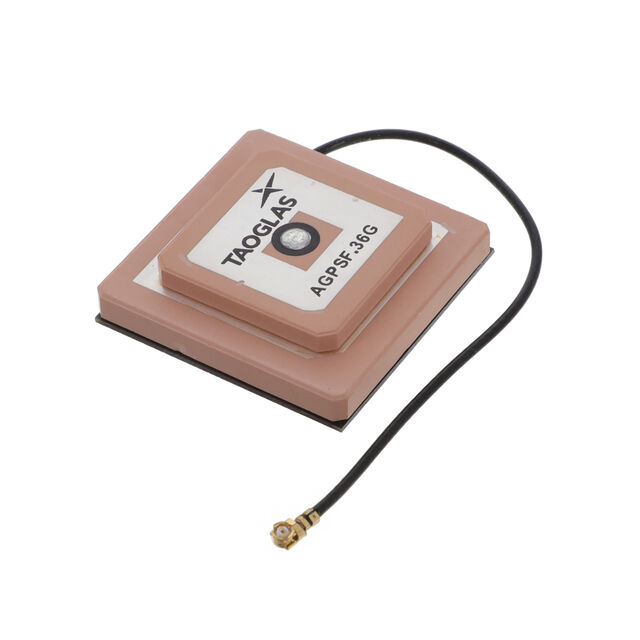

AGPSF.36G.07.0100C
ActiveTaoglas Limited
GNSS L1/L2 LOW PROFILE STACKED P
AGPSF.36G.07.0100C
ActiveTaoglas Limited
GNSS L1/L2 LOW PROFILE STACKED P
Description
General part information
AGPSF.36G.07.0100C
RF ANTENNA Beidou, Galileo, GLONASS, GPS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AGPSF.36G.07.0100C |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | Galileo, GLONASS, BEIDOU, GPS |
| Features | Filter, LNA, Cable, 100mm |
| Frequency (Center/Band) | 1.24GHz, 1.22GHz, 1.6GHz, 1.56GHz, 1.576GHz, 1.575GHz |
| Frequency (Center/Band) - 1 | 1.22 GHz |
| Frequency (Center/Band) - 2 | 1.24 GHz |
| Frequency (Center/Band) - 3 | 1.56 GHz |
| Frequency (Center/Band) - 4 | 1.575 GHz |
| Frequency (Center/Band) - 5 | 1.576 GHz |
| Frequency (Center/Band) - 6 | 1.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.24 GHz |
| Frequency Range (Band 1) Minimum | 1.21 GHz |
| Frequency Range (Band 2) Maximum | 1.25 GHz |
| Frequency Range (Band 2) Minimum | 1.24 GHz |
| Frequency Range (Band 3) Maximum | 1.56 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Frequency Range (Band 4) Maximum | 1.59 GHz |
| Frequency Range (Band 4) Minimum | 1.563 GHz |
| Frequency Range (Band 5) Maximum | 1.61 GHz |
| Frequency Range (Band 5) Minimum | 1.564 GHz |
| Frequency Range (Band 6) Maximum | 1.61 GHz |
| Frequency Range (Band 6) Minimum | 1.59 GHz |
| Gain | 4.2 dBi, 0.9 dBi, 3.2 dBi, 3.7 dBi, 0.8 dBi |
| Height (Max) | 0.433 in |
| Mounting Type | Surface Mount |
| Number of Bands | 6 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination Type | U.FL, I-PEX MHF1 |
