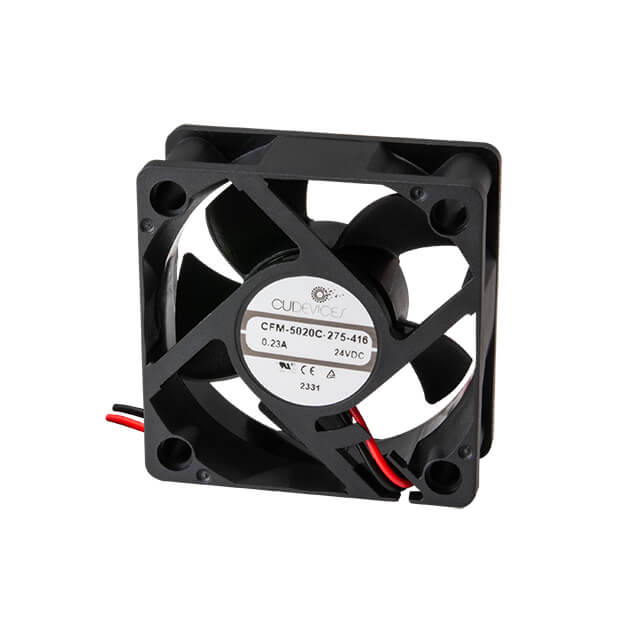

CFM-5020C-275-416
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 50 MM SQUARE, 20 M
CFM-5020C-275-416
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 50 MM SQUARE, 20 M
Description
General part information
CFM-5020C-275-416
Fan Tubeaxial 24VDC Square - 50mm L x 50mm H omniCOOL™ Magnetic Sleeve 22.8 CFM (0.638m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-5020C-275-416 |
|---|---|
| Air Flow | 22.8 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Current Rating | 110 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime | 40000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 41.6 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 2.64 W |
| RPM | 7500 RPM |
| Size / Dimension Height | 50 mm |
| Size / Dimension Length | 50 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.41 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 26.4 VDC |
| Voltage Range (Min) | 21.6 VDC |
| Width | 19.8 mm |
