28B0562-200
ActiveLaird Technologies EMI
FERRITE CORE 294 OHM SOLID
28B0562-200
ActiveLaird Technologies EMI
FERRITE CORE 294 OHM SOLID
Description
General part information
28B0562-200

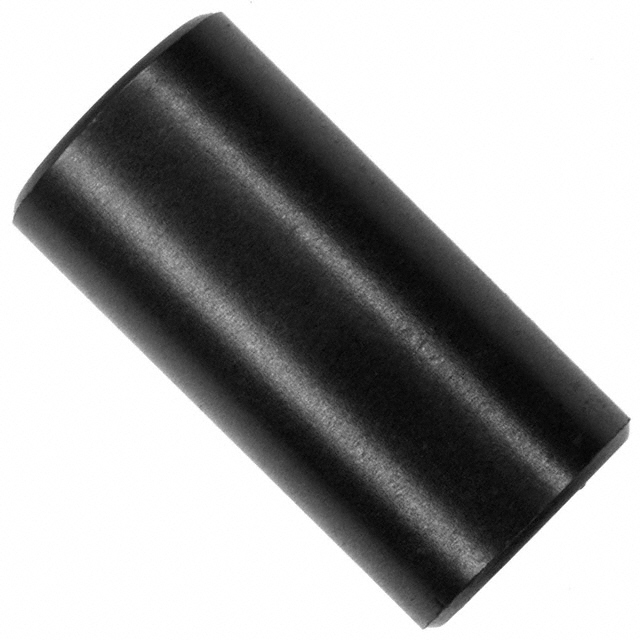

Solid Free Hanging Ferrite Core 294Ohm @ 100MHz ID 0.250" Dia (6.35mm) OD 0.562" Dia (14.27mm) Length 1.125" (28.58mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28B0562-200 |
|---|---|
| Design | Solid |
| Impedance | 294 Ohm |
| Inner Dimension (Diameter) | 0.25 in |
| Length | 1.125 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 0.562 in |
| Type | Round |
