Description
General part information

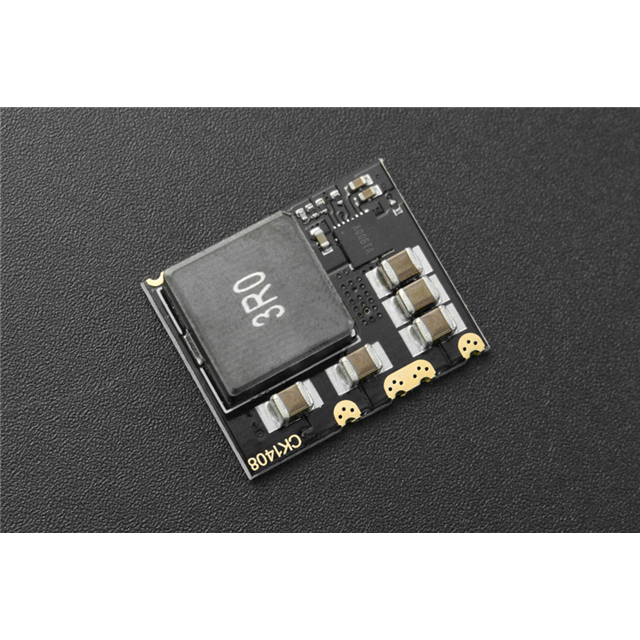

DFR0753
- DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DFR0753 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 8 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 40 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Voltage - Input (Maximum) | 14 V |
| Voltage - Input (Minimum) | 6 V |
| Voltage - Output | 5 VDC |
