633-M44-663-WN1

Active

EDAC Inc.

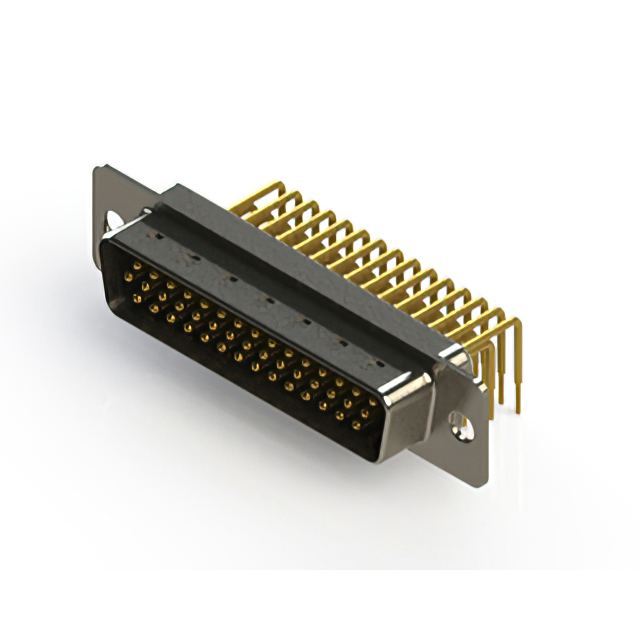

D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, HOLE .120, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-M44-663-WN1

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 44 CONTACT(S), MALE, 0.09 INCH PITCH, SOLDER TERMINAL, HOLE .120, PLUG,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-M44-663-WN1

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	White
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

633-M44 Series

Part	Color	Connector Type	Contact Finish Thickness	Number of Rows	Backset Spacing	Backset Spacing	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Connector Style	Material Flammability Rating	Flange Feature	Features	Shell Material, Finish	Contact Type	Current Rating (Amps)	Contact Material	Dielectric Material	Number of Positions	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 633-M44-263-BN6	Black	Male Pins Plug	Flash	3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	4-40 Board Side	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder
EDAC Inc. 633-M44-663-WN1	White	Male Pins Plug		3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (Unthreaded)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder	0.76 Ám	30 Áin
EDAC Inc. 633-M44-263-WN1	White	Male Pins Plug	Flash	3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (Unthreaded)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder
EDAC Inc. 633-M44-263-BN1	Black	Male Pins Plug	Flash	3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (Unthreaded)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder
EDAC Inc. 633-M44-263-WN2	White	Male Pins Plug	Flash	3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder
EDAC Inc. 633-M44-263-BN2	Black	Male Pins Plug	Flash	3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder
EDAC Inc. 633-M44-363-BN4	Black	Male Pins Plug		3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder	0.38 µm	15 µin
EDAC Inc. 633-M44-663-BN4	Black	Male Pins Plug		3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	Housing/Shell (4-40)	Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder	0.76 Ám	30 Áin
EDAC Inc. 633-M44-663-WT6	White	Male Pins Plug		3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub High Density	UL94 V-0	4-40 Board Side	Grounding Indents Shielded		Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder	0.76 Ám	30 Áin
EDAC Inc. 633-M44-663-WN3	White	Male Pins Plug		3	8.89 mm	0.35 in	Board Edge Right Angle Through Hole	-55 °C	125 °C	Gold	D-Sub	UL94 V-0	Housing/Shell (4-40)	Board Lock Grounding Indents Shielded	Nickel Plated Steel	Signal	5 A	Copper Alloy	Polyamide (PA6T) Nylon 6T	44	3	B DB	Solder	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 19.71

Description

General part information

633-M44 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
