630-3W3-640-3TE

Active

EDAC Inc.

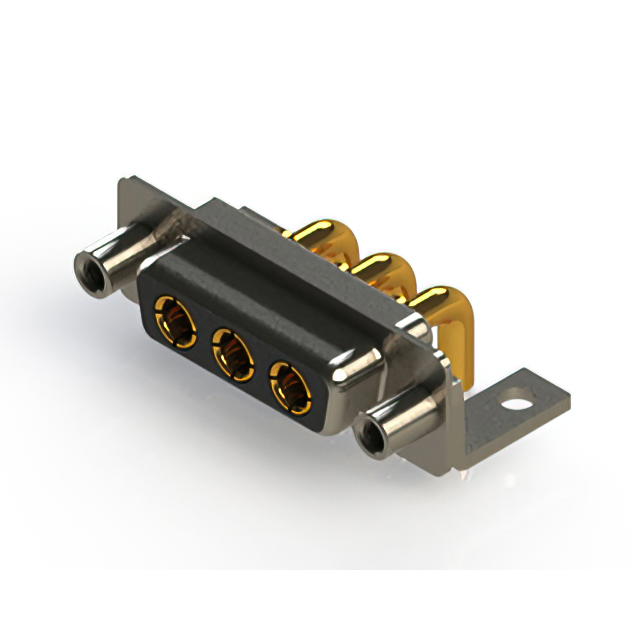

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

630-3W3-640-3TE

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-3W3-640-3TE

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

630-3W3 Series

...

Part	Backset Spacing	Backset Spacing	Termination	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Color	Mounting Type	Number of Rows	Flange Feature	Contact Type	Contact Finish	Dielectric Material	Connector Type	Contact Material	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 630-3W3-650-4TC	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	Housing/Shell (M3)	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Mounting Brackets	3	0.76 Ám	30 Áin	Combo D-Sub	40 A
EDAC Inc. 630-3W3-640-7ND	9.4 mm	0.37 in	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	M3	Coax	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Board Lock Mounting Brackets	3	0.76 Ám	30 Áin	Combo D-Sub		Nickel Plated Steel
EDAC Inc. 630-3W3-640-4NA	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	Board Side (M3)	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy		3	0.76 Ám	30 Áin	Combo D-Sub	40 A	Nickel Plated Steel
EDAC Inc. 630-3W3-640-3N4	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	Housing/Shell (4-40)	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Mounting Brackets	3	0.76 Ám	30 Áin	Combo D-Sub	30 A	Nickel Plated Steel
EDAC Inc. 630-3W3-640-7T6	9.4 mm	0.37 in	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	4-40	Coax	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy		3	0.76 Ám	30 Áin	Combo D-Sub
EDAC Inc. 630-3W3-640-3TE	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	M3	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Mounting Brackets	3	0.76 Ám	30 Áin	Combo D-Sub	30 A
EDAC Inc. 630-3W3-240-5TC	9.4 mm	0.37 in	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	Housing/Shell (M3)	Coax	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Mounting Brackets	3			Combo D-Sub			Flash
EDAC Inc. 630-3W3-640-5T5	9.4 mm	0.37 in	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	4-40	Coax	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Board Lock Mounting Brackets	3	0.76 Ám	30 Áin	Combo D-Sub
EDAC Inc. 630-3W3-250-2NA	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	Board Side (M3)	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy		3			Combo D-Sub	20 A	Nickel Plated Steel	Flash
EDAC Inc. 630-3W3-250-1T5	13.2 mm	0.52 "	Solder	125 VDC	2 (DA A)	3W3	-55 °C	125 °C	UL94 V-0	Black	Through Hole Right Angle	1	4-40	Power	Gold	Polyester Thermoplastic	Receptacle Female Sockets	Copper Alloy	Board Lock Mounting Brackets	3			Combo D-Sub	10 A		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 11.24
Newark	Each	1	$ 15.56
		5000	$ 13.75

Description

General part information

630-3W3 Series

3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
