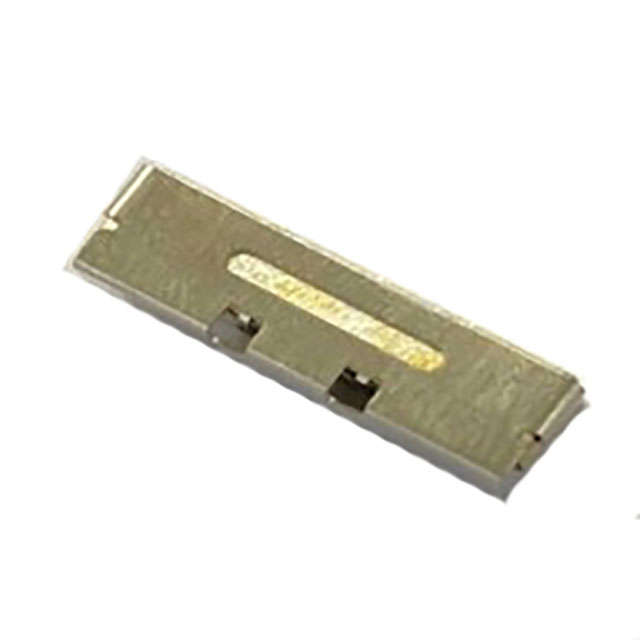

CDR2005
ActiveRFMi
DR FILTER, SUB 6G/ 5TH G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDR2005
ActiveRFMi
DR FILTER, SUB 6G/ 5TH G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR2005 |
|---|---|
| Bandwidth | 400 MHz |
| Filter Type | Band Pass |
| Frequency | 3.6 GHz |
| Height (Max) | 4.7 mm |
| Height (Max) [Max] | 0.185 " |
| Impedance | 50 Ohms |
| Insertion Loss | 2.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension [x] | 0.626 in |
| Size / Dimension [x] | 15.9 mm |
| Size / Dimension [y] | 4.8 mm |
| Size / Dimension [y] | 0.189 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.70 | |
Description
General part information
CDR2005
3.6GHz Center Band Pass Ceramic Filter 400 MHz 50Ohm Nonstandard
Documents
Technical documentation and resources
