2900329

Active

Phoenix Contact

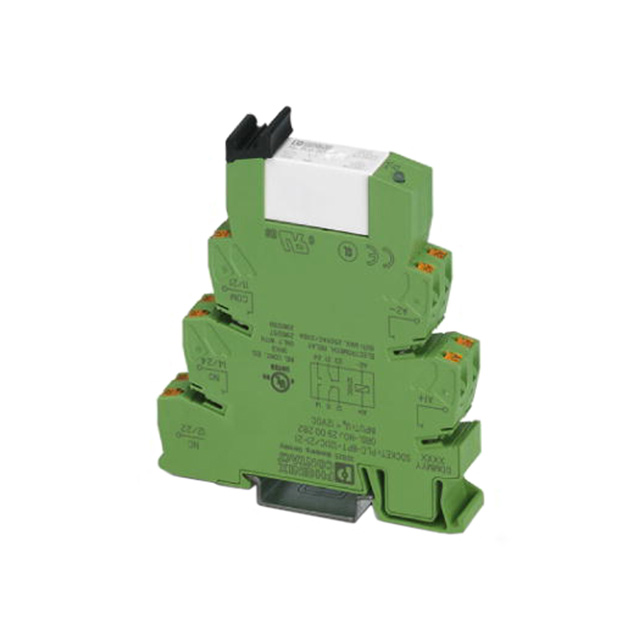

RELAY GEN PURPOSE DPDT 6A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2900329

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2900329	29003 Series

Approval Agency	UKCA, CE	UKCA, CE, cULus, DNV, UL, EAC
Coil Current	33 mA	2 - 33 mA
Coil Resistance	364 Ohms	1.2 - 5217 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 230 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au)
Contact Rating (Current)	6 A	6 - 50 A
Features	Socket Included, Diode, Lighted Indicator	Lighted Indicator, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	4 - 20 ms
Operating Temperature [Max]	60 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	4 - 60 ms
Switching Voltage	250 VAC, 250 VDC	30 - 250 VAC
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal

29003 Series

INDUSTRIAL RELAYS PLC-RPT- 24DC/21-21

Part	Release Time	Operate Time	Contact Material	Contact Form	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Coil Current	Coil Resistance	Features	Switching Voltage	Relay Type	Contact Rating (Current)	Termination Style	Coil Type
Phoenix Contact 2900330	10 ms	8 ms	Silver Nickel (AgNi)	DPDT (2 Form C)	24 VDC	-40 °C	60 °C	CE, UKCA	DIN Rail	18 mA	1333 Ohms	Lighted Indicator, Socket Included	250 VAC, 250 VDC	General Purpose	6 A	Spring Terminal	Non Latching
Phoenix Contact 2900319	4 ms	4 ms	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	72 VDC	-40 °C	70 °C	CE, UKCA	DIN Rail	3 mA	24 kOhms	Diode, Lighted Indicator, Socket Included	250 VAC, 250 VDC	General Purpose	6 A	Spring Terminal	Non Latching
Phoenix Contact 2900314	15 ms	6 ms	Gold (Au), Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	120 VAC, 120 VDC	-40 °C	60 °C	cULus, DNV, EAC, UL	DIN Rail	3.5 mA	34.29 kOhms	Lighted Indicator, Socket Included	30 VAC, 36 VDC	General Purpose	50 mA	Spring Terminal	Non Latching
Phoenix Contact 2900333	10 ms	8 ms	Silver Nickel (AgNi)	DPDT (2 Form C)	48 VDC	-40 °C	60 °C	CE, UKCA	DIN Rail	20 mA	2.4 kOhms	Diode, Lighted Indicator, Socket Included	250 VAC, 250 VDC	General Purpose	6 A	Spring Terminal	Non Latching
Phoenix Contact 2900340	10 ms	8 ms	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	48 VDC	-40 °C	60 °C	CE, UKCA	DIN Rail	20 mA	2.4 kOhms	Diode, Lighted Indicator, Socket Included	250 VAC, 250 VDC	General Purpose	6 A	Spring Terminal	Non Latching
Phoenix Contact 2900326	11 ms	5 ms	Silver Nickel (AgNi)	SPDT (1 Form C)	110 VDC	-40 °C	70 °C	CE, UKCA	DIN Rail	4.5 mA	24.44 kOhms	Diode, Lighted Indicator, Socket Included	250 VAC, 250 VDC	General Purpose	10 A	Spring Terminal	Non Latching
Phoenix Contact 2900313	8 ms	5 ms	Gold (Au), Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	24 VDC	-40 °C	60 °C	cULus, DNV, EAC, UL	DIN Rail	9 mA	2.67 kOhms	Lighted Indicator, Socket Included	30 VAC, 36 VDC	General Purpose	50 mA	Spring Terminal	Non Latching
Phoenix Contact 2900349	11 ms	5 ms	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	24 VDC	-40 °C	70 °C	cULus, DNV, EAC, UL	DIN Rail	20 mA	1.2 kOhms	Diode, Lighted Indicator, Socket Included	30 VAC, 36 VDC	General Purpose	50 mA	Screw Terminal	Non Latching
Phoenix Contact 2900345	60 ms	20 ms	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	230 VAC	-25 °C	55 °C	cULus, DNV, EAC, UL	DIN Rail		47.92 kOhms	Lighted Indicator, Socket Included	30 VAC, 36 VDC	General Purpose	50 mA	Spring Terminal	Non Latching
Phoenix Contact 2900339	10 ms	8 ms	Gold (Au), Silver Nickel (AgNi)	DPDT (2 Form C)	24 VAC	-40 °C	60 °C	cULus, DNV, EAC, UL	DIN Rail	17.5 mA	1.37 kOhms	Lighted Indicator	30 VAC, 36 VDC	General Purpose	50 mA	Spring Terminal	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.29
		10	$ 22.70
		50	$ 20.88
		100	$ 20.49

Description

General part information

29003 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil DIN Rail

Documents

Technical documentation and resources
