S2/0-12R-C
ActivePanduit Corp
CONN RING FLAT 2/0AWG #1/2 CRIMP
S2/0-12R-C
ActivePanduit Corp
CONN RING FLAT 2/0AWG #1/2 CRIMP
Description
General part information
S2/0-12R-C

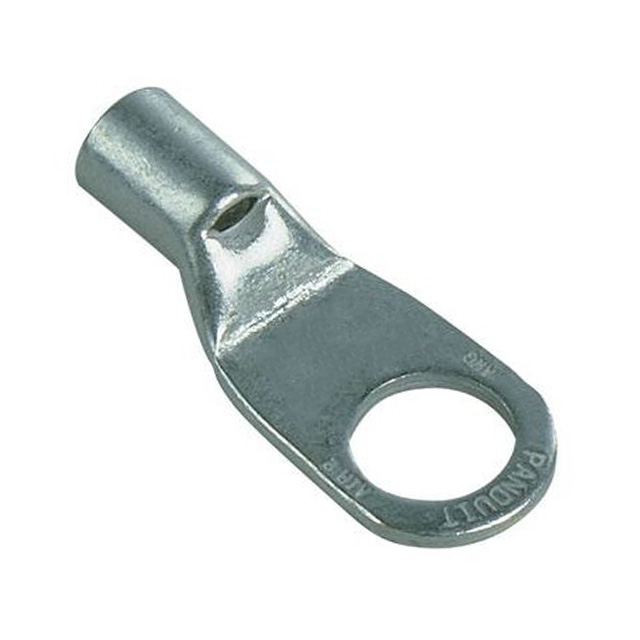

Ring Terminal Connector 1/2 Stud Flat Sided 2/0 AWG Crimp, Funnel Opening
Technical Specifications
Parameters and characteristics for this part
| Specification | S2/0-12R-C |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 2.1 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Type | Flat Sided |
| Termination | Crimp, Funnel Opening |
| Thickness | 0.13 in |
| Width - Outer Edges | 0.85 in |
| Wire Gauge | 2/0 AWG |
