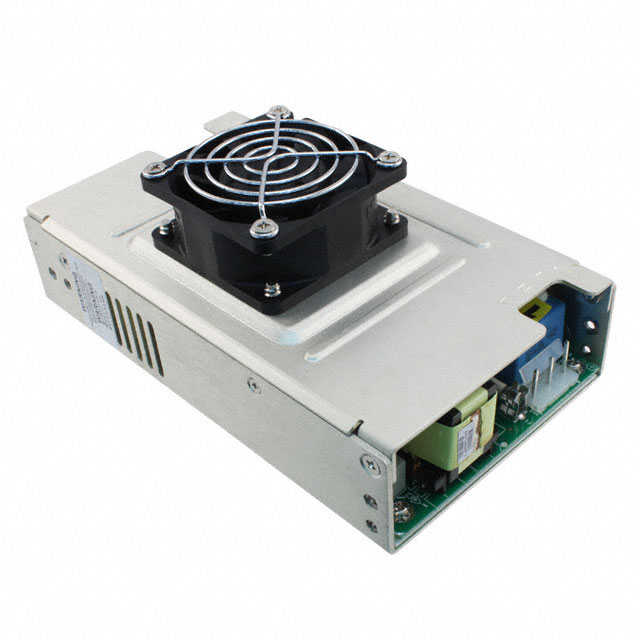

NTS358-CF
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 48V 200W
NTS358-CF
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 48V 200W
Description
General part information
NTS358-CF
Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NTS358-CF |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Current - Output 1 | 4.2 A |
| Efficiency | 85 % |
| Features | Universal Input, PFC, Remote On/Off, Standby Output, Adjustable Output, Load Sharing, DC Input Capable, Remote Sense |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 200 W, 350 W |
| Size / Dimension Height | 1.5 in |
| Size / Dimension Length | 7 in |
| Size / Dimension Width | 4 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 48 V |
