94855
Active3M Electronic Specialty
CONN RING CIR 14-16AWG #6 1=1PC
94855
Active3M Electronic Specialty
CONN RING CIR 14-16AWG #6 1=1PC
Description
General part information
94855

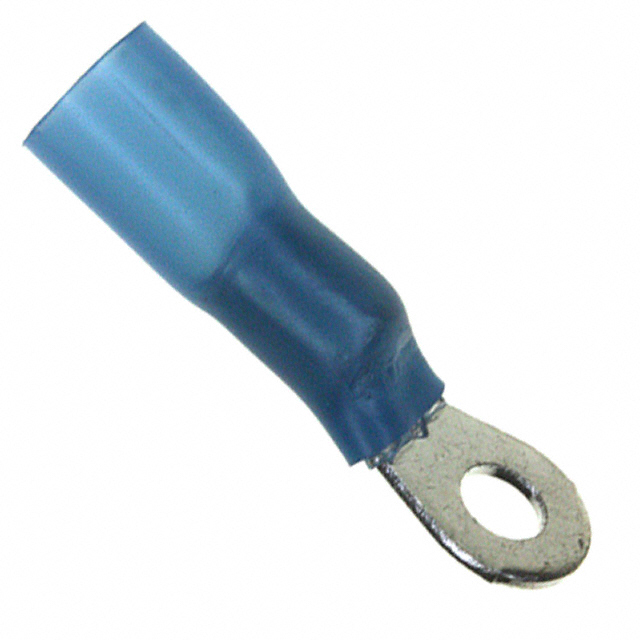

Ring Terminal Connector 6 Stud Circular 14-16 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 94855 |
|---|---|
| Color | Blue |
| Features | Brazed Seam |
| Insulation | Insulated with Heat Shrink |
| Length - Overall | 1 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.31 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
