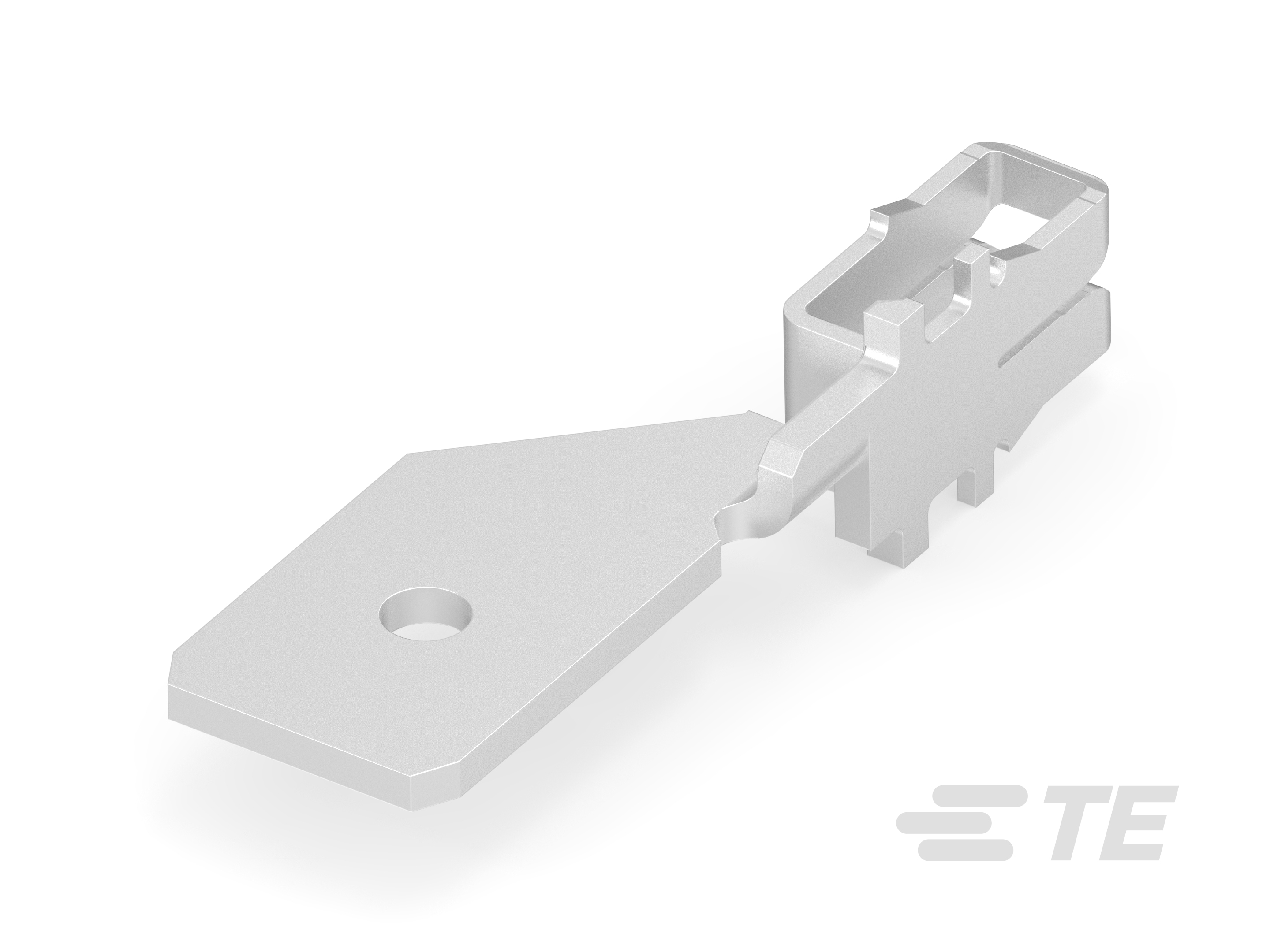

2232555-3
ActiveTE Connectivity AMP Connectors
TERMINAL, MAGNET WIRE, IDC/IDT ROHS COMPLIANT: YES
2232555-3
ActiveTE Connectivity AMP Connectors
TERMINAL, MAGNET WIRE, IDC/IDT ROHS COMPLIANT: YES
Description
General part information
2232555-3
Tab, 6.35 mm [.25 in] Tab Width, 25 – 24 AWG Aluminum Wire, .45 – .5 mm Aluminum Wire, 25 – 24 AWG Magnet Wire, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 2232555-3 |
|---|---|
| Style | 500 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge (AWG) (Max) | 25 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
