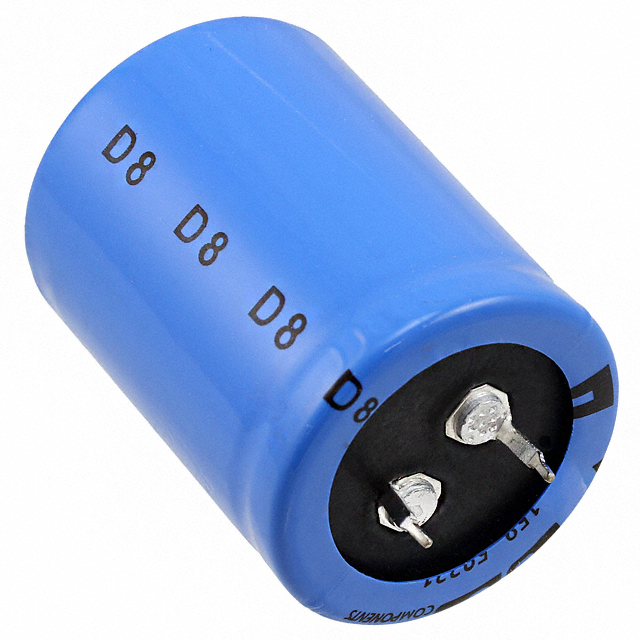

Specification	MAL215959221E3

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	400 mOhm
Height - Seated (Max)	1.654 in
Impedance	280 mOhm
Lead Spacing	0.394 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.3 A
Size / Dimension Diameter	1.181 in
Tolerance	20 %
Voltage - Rated	500 V
