629-3WK3640-1N1

Active

EDAC Inc.

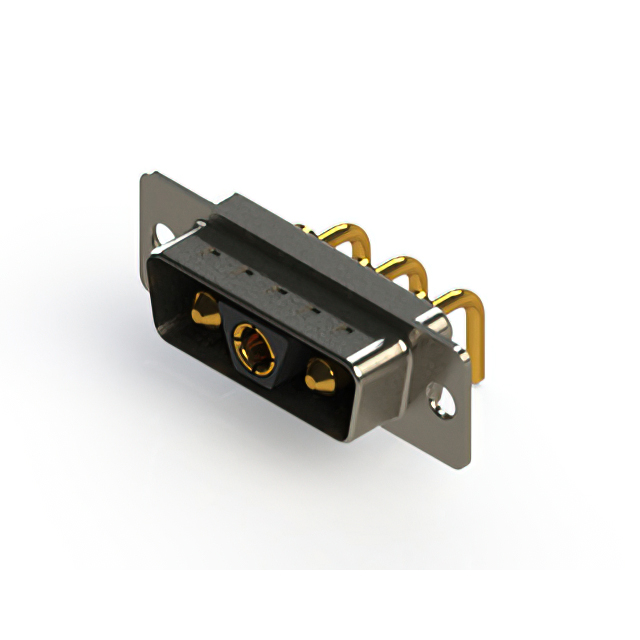

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-3WK3640-1N1

Active

EDAC Inc.

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-3WK3640-1N1

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

629-3WK Series

...

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Flange Feature	Dielectric Material	Material Flammability Rating	Number of Rows	Connector Style	Contact Finish Thickness	Backset Spacing	Backset Spacing	Mounting Type	Current Rating (Amps)	Number of Positions	Voltage Rating	Contact Material	Termination	Color	Contact Finish	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 629-3WK3250-2T3	Power	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets	Female Sockets Male Pins Plug	Housing/Shell (4-40)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	13.2 mm	0.52 "	Through Hole Right Angle	20 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3
EDAC Inc. 629-3WK3650-1TC	Power	-55 °C	125 °C	Grounding Indents Mounting Brackets	Female Sockets Male Pins Plug	Housing/Shell (M3)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub		13.2 mm	0.52 "	Through Hole Right Angle	10 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3	0.76 Ám	30 Áin
EDAC Inc. 629-3WK3240-7N6	Coax	-55 °C	125 °C	Board Lock Grounding Indents	Female Sockets Male Pins Plug	4-40	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	9.4 mm	0.37 in	Through Hole Right Angle		3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3			Nickel Plated Steel
EDAC Inc. 629-3WK3650-3TE	Power	-55 °C	125 °C	Grounding Indents Mounting Brackets	Female Sockets Male Pins Plug	M3	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub		13.2 mm	0.52 "	Through Hole Right Angle	30 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3	0.76 Ám	30 Áin
EDAC Inc. 629-3WK3240-4T2	Power	-55 °C	125 °C		Female Sockets Male Pins Plug	Housing/Shell (4-40)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	13.2 mm	0.52 "	Through Hole Right Angle	40 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3
EDAC Inc. 629-3WK3240-7T2	Coax	-55 °C	125 °C		Female Sockets Male Pins Plug	Housing/Shell (4-40)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	9.4 mm	0.37 in	Through Hole Right Angle		3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3
EDAC Inc. 629-3WK3250-4TA	Power	-55 °C	125 °C	Grounding Indents	Female Sockets Male Pins Plug	Board Side (M3)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	13.2 mm	0.52 "	Through Hole Right Angle	40 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3
EDAC Inc. 629-3WK3240-1T1	Power	-55 °C	125 °C	Grounding Indents Shielded	Female Sockets Male Pins Plug	Housing/Shell (Unthreaded)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	13.2 mm	0.52 "	Through Hole Right Angle	10 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3
EDAC Inc. 629-3WK3240-1N1	Power	-55 °C	125 °C	Grounding Indents Shielded	Female Sockets Male Pins Plug	Housing/Shell (Unthreaded)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub	Flash	13.2 mm	0.52 "	Through Hole Right Angle	10 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3			Nickel Plated Steel
EDAC Inc. 629-3WK3640-1N1	Power	-55 °C	125 °C	Grounding Indents Shielded	Female Sockets Male Pins Plug	Housing/Shell (Unthreaded)	Polyester Thermoplastic	UL94 V-0	1	Combo D-Sub		13.2 mm	0.52 "	Through Hole Right Angle	10 A	3	125 VDC	Copper Alloy	Solder	Black	Gold	2 (DA A) - 3WK3	0.76 Ám	30 Áin	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 12.88

Description

General part information

629-3WK Series

3 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
