794115-3
ActiveTE Connectivity AMP Connectors

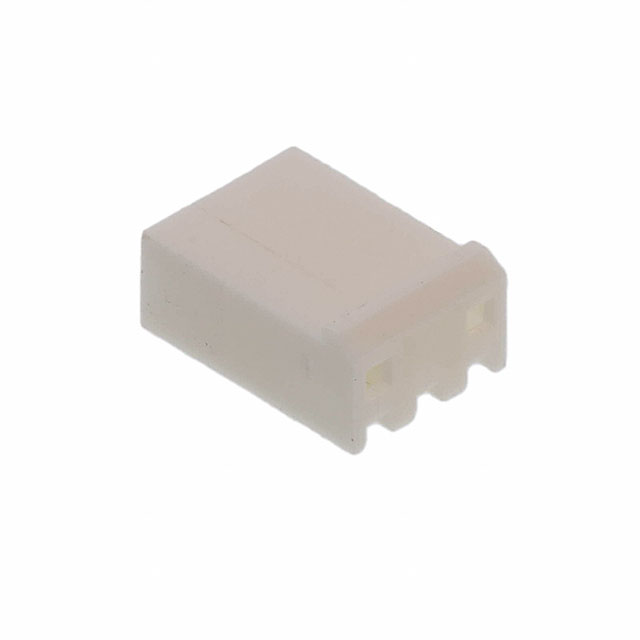

CONN RCPT HSG 3POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794115-3
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 3POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794115-3 | 794115 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Male Pin, Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Positions Molded Closed | Positions Molded Closed |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 7 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.156 in | 0.156 in |
| Pitch [x] | 3.96 mm | 3.96 mm |
794115 Series
CONN RCPT HSG 7POS 3.96MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Termination | Fastening Type | Connector Type | Insulation Material | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Features | Mounting Type | Note | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 9-794115-3 | 105 ░C | -55 °C | 7 | Crimp | Locking Ramp | Receptacle | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | Male Pin | 1 | Positions Molded Closed | Free Hanging (In-Line) | Contacts Not Included | |
TE Connectivity AMP Connectors 794115-3 | 105 ░C | -55 °C | Crimp | Locking Ramp | Receptacle | Nylon, Polyamide (PA) | 0.156 in | 3.96 mm | Female Socket | 1 | Positions Molded Closed | Free Hanging (In-Line) | Contacts Not Included | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.33 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.18 | |||
Description
General part information
794115 Series
3 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
Documents
Technical documentation and resources
