100023403
ActiveTelegartner Inc
BNC JCK STR CR/CL G1 Z50
100023403
ActiveTelegartner Inc
BNC JCK STR CR/CL G1 Z50
Description
General part information
100023403

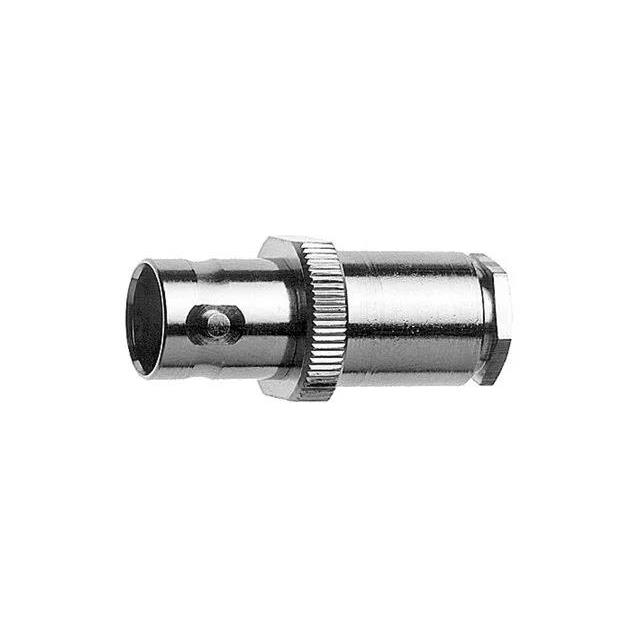

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023403 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141, Belden 7806A, LMR-195, RG-58, 58C, 9907 |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shield Termination | Clamp |
| Voltage Rating | 500 V |
