KIT,PLUG,37P,HDP-20,SHLD ENCLS-5747958-1

5747958-1

Active
TE Connectivity AMP Connectors

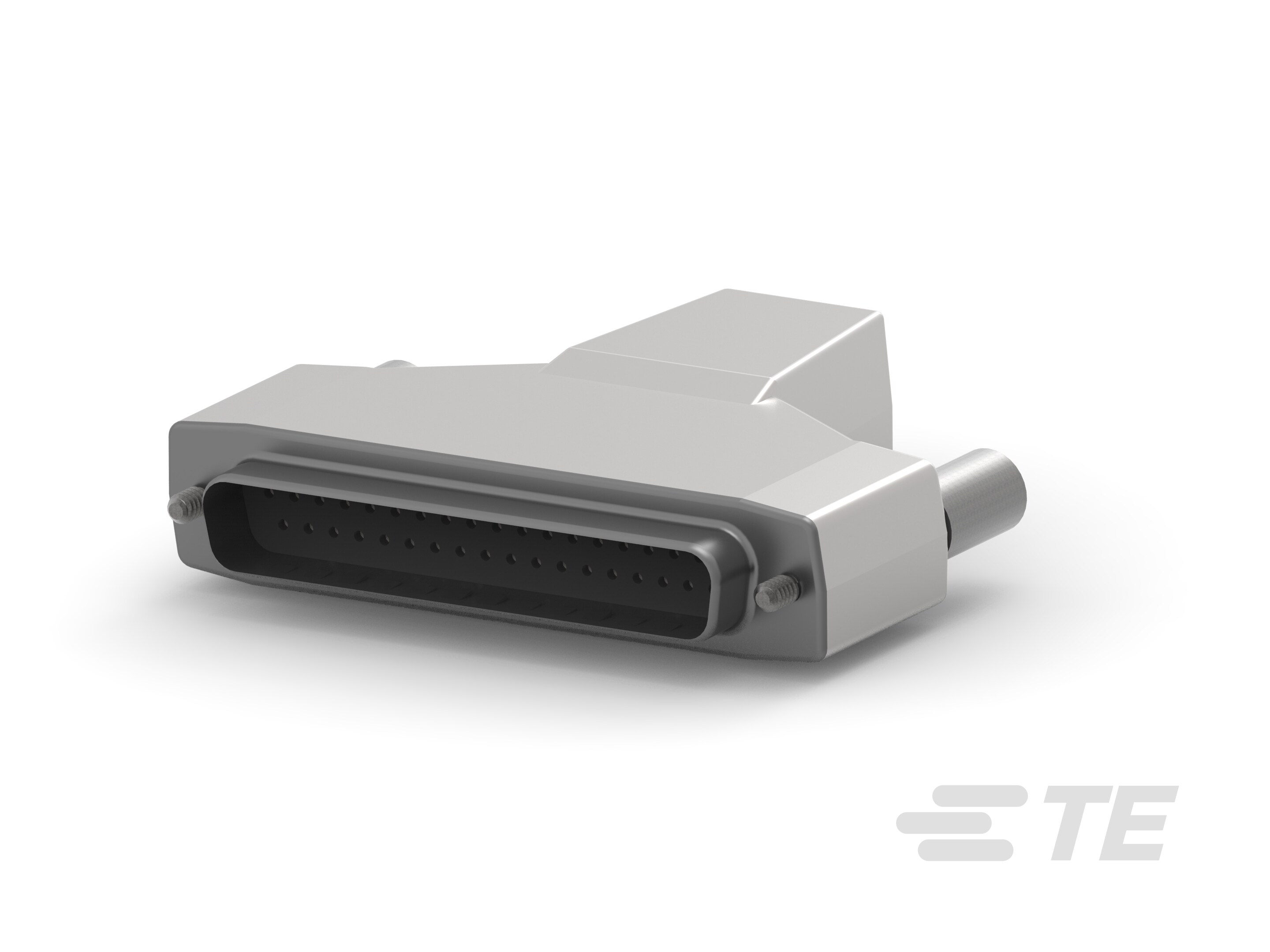

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, AMPLIMITE HDP-20 SERIES, PLUG, METAL BODY

Find alt
KIT,PLUG,37P,HDP-20,SHLD ENCLS-5747958-1

5747958-1

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR HOUSING, 37 POSITIONS, D SUB, DC, AMPLIMITE HDP-20 SERIES, PLUG, METAL BODY

Find alt

Description

General part information

5747958-1

37 Position D-Shaped Connector, Plug, Cable-to-Cable, Panel Mount, 4 Shell Size, 2.74 mm / 2.77 mm / 2.79 mm [.108 in / .109 in / .11 in] Centerline

Technical Specifications

Parameters and characteristics for this part

Specification5747958-1
Connector LayoutDC, C
Connector StyleD-Sub
Connector TypePlug for Male Contacts
Contact TypeSignal
FeaturesGrounding Indents, Backshell, Shielded
FinishTin Plated
Flange FeatureCable Side (4-40)
Mounting TypeFree Hanging (In-Line)
Number of Positions37 pos
Number of Rows2
Shell Finish Thickness200 µin
Shell MaterialSteel
Shell Size4
