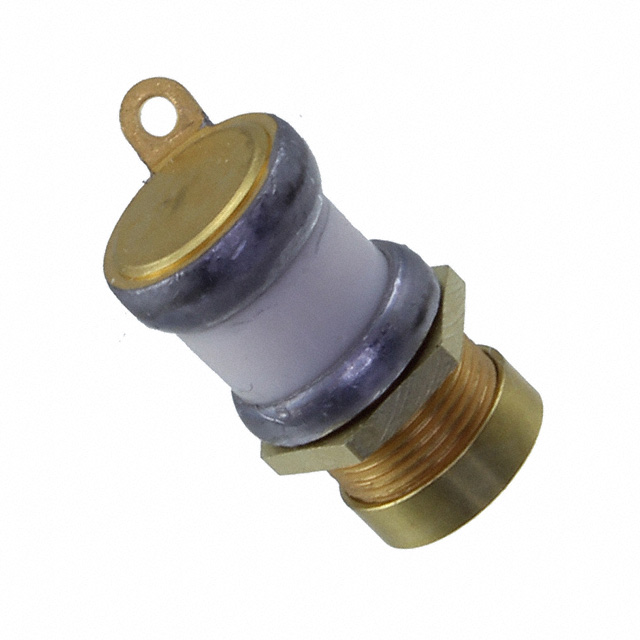

5200
ActiveKnowles Syfer
CAP TRIMMER 0.8-10PF 250V PNL MT
5200
ActiveKnowles Syfer
CAP TRIMMER 0.8-10PF 250V PNL MT
Description
General part information
5200
0.8 ~ 10pF Trimmer Capacitor 250 V Top Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 5200 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 10 pF |
| Capacitance Range (Min) | 0.8 pF |
| Dielectric Material | Air |
| Features | Sealed |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 5000 |
| Size / Dimension Diameter | 0.28 in |
| Voltage - Rated | 250 V |
