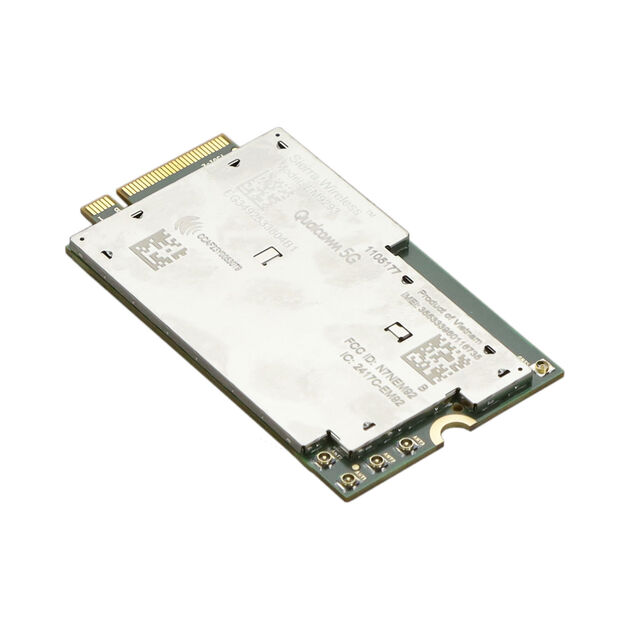

EM9293_1105177
ActiveSemtech Corporation
SDX65 M.2 5G NR SUB6 + GNSS
EM9293_1105177
ActiveSemtech Corporation
SDX65 M.2 5G NR SUB6 + GNSS
Description
General part information
EM9293_1105177
Transceiver Module
Technical Specifications
Parameters and characteristics for this part
| Specification | EM9293_1105177 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 3.78 Gbps |
| Frequency | 6 GHz |
| Modulation | DSSS, GMSK, 256-QAM |
| Mounting Type | Card Edge |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Protocol | QZSS, HSPA, LTE, GNSS, GLONASS, BeiDou, Bluetooth, UMTS, GPS, Galileo |
| RF Family/Standard | Cellular, Navigation, Bluetooth |
| Sensitivity | -160 dBm |
| Serial Interfaces | PCIe, USB |
| Voltage - Supply (Maximum) | 4.4 V |
| Voltage - Supply (Minimum) | 3.1 V |
