AQ12EA220GAJME
ObsoleteKYOCERA AVX
CAP CER 22PF 150V 0505
AQ12EA220GAJME
ObsoleteKYOCERA AVX
CAP CER 22PF 150V 0505
Description
General part information

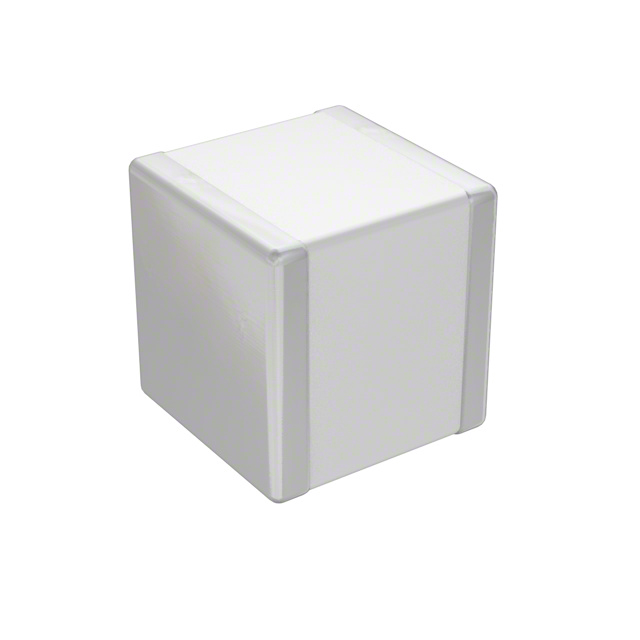

AQ12EA220GAJME
22 pF ±2% 150V Ceramic Capacitor A 0505 (1313 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AQ12EA220GAJME |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 22 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0505 (1313 Metric) |
| Size / Dimension Length | 0.055 in |
| Size / Dimension Width | 0.055 in |
| Temperature Coefficient | A |
| Thickness (Max) | 0.057 in |
| Tolerance | 2 % |
| Voltage - Rated | 150 VAC |
