225696-E
ActiveTE Connectivity AMP Connectors

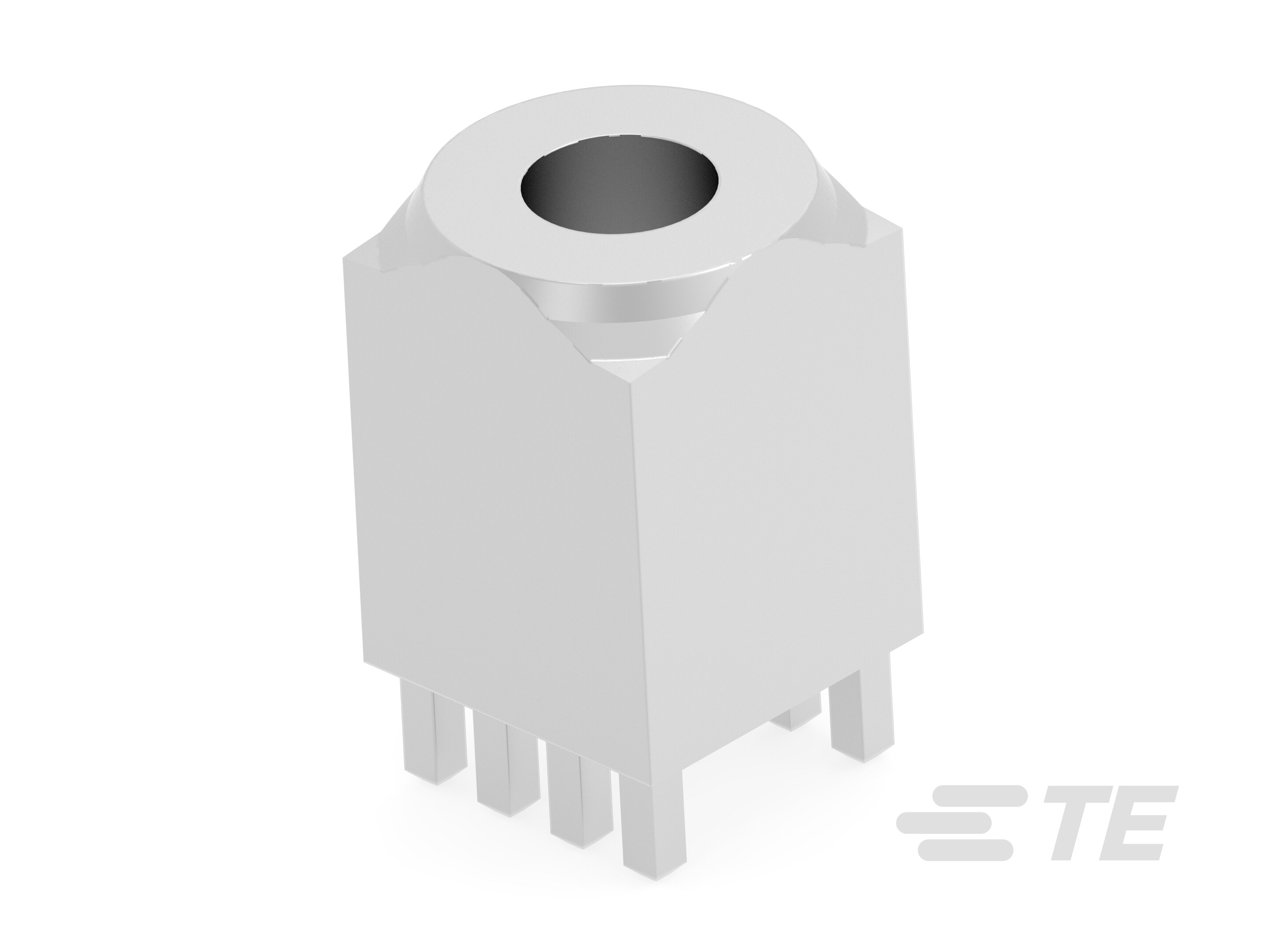

POWELM BUCHSE ZWEIM M6 9 2,54 * EP 13,5
225696-E
ActiveTE Connectivity AMP Connectors
POWELM BUCHSE ZWEIM M6 9 2,54 * EP 13,5
Description
General part information
225696-E
Power Tap, Terminates To Printed Circuit Board, 8 Position, 2.54 mm [.1 in] Centerline, Vertical, Tin (Sn), Power Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 225696-E |
|---|---|
| Current Rating | 80 A |
| Mounting Type | Through Hole |
| Number of Pins | 8 |
| Screw Size | M6 |
| Terminal Type | Power Tap, Screw Terminal |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
