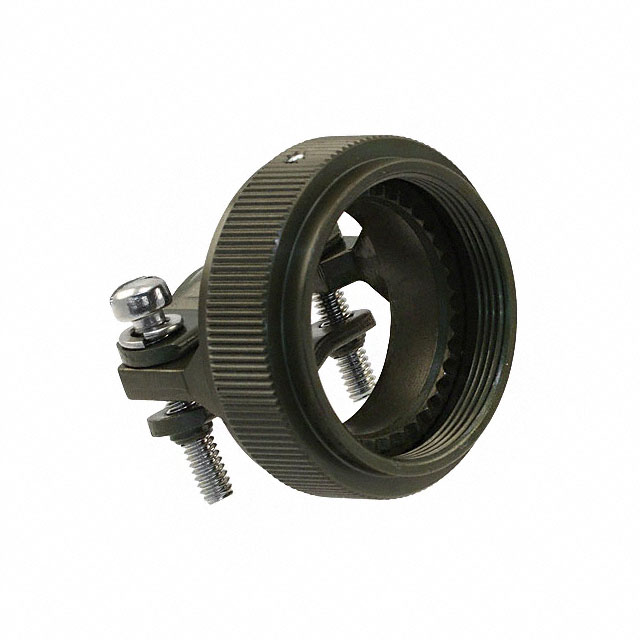

Specification	M85049/38S21W

Cable Exit Angle	180 °
Cable Opening (Max)	0.7 in
Cable Opening (Min)	0.34 in
Color	Olive
Diameter - Outside	1.64 in
Features	Self-Locking, Clamp Screws
For Use With/Related Products	IV, MIL-DTL-38999 Series III
Material	Aluminum Alloy
Plating	Cadmium Nickel
Shell Size - Insert	21
Shell Size - Insert	21
Type	Cable Clamp

M85049/38 Series

Part	Type	Shell Size - Insert	Cable Exit Angle	Material	Color	Cable Opening (Max)	Cable Opening (Min)	Features	Diameter - Outside	Plating	For Use With/Related Products	Shell Size - Insert	Shielding
McGill Microwave Systems M85049/38S17W	Cable Clamp	17	180 °	Aluminum Alloy	Olive	0.61 in	0.28 in	Clamp Screws Self-Locking	1.41 in	Cadmium Nickel	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/38S13W	Cable Clamp	13	180 °	Aluminum Alloy	Olive	0.33 in	0.19 in	Clamp Screws Self-Locking	1.16 in	Cadmium Nickel
McGill Microwave Systems M85049/38-15A	Cable Clamp	15	180 °	Aluminum Alloy	Black	0.46 in	0.26 in	Clamp Screws	1.28 in	Anodized	IV MIL-DTL-38999 Series III	15
McGill Microwave Systems M85049/38S11W	Cable Clamp	11	180 °	Aluminum Alloy	Olive	0.23 in	0.15 in	Clamp Screws Self-Locking	0.98 in	Cadmium Nickel	IV MIL-DTL-38999 Series III	11
McGill Microwave Systems M85049/38S15N	Cable Clamp	15	180 °	Aluminum Alloy	Silver	0.46 in	0.26 in	Clamp Screws Self-Locking	1.28 in	Electroless Nickel	IV MIL-DTL-38999 Series III	15
McGill Microwave Systems M85049/38S15W	Cable Clamp	15	180 °	Aluminum Alloy	Olive	0.46 in	0.26 in	Clamp Screws Self-Locking	1.28 in	Cadmium Nickel	IV MIL-DTL-38999 Series III	15
McGill Microwave Systems M85049/38S11W	Cable Clamp	11	180 °	Aluminum Alloy	Olive	0.23 in	0.15 in	Clamp Screws Self-Locking	0.98 in	Cadmium Nickel	IV MIL-DTL-38999 Series III	11
McGill Microwave Systems M85049/38-19A	Cable Clamp	19 F	180 °	Aluminum Alloy	Black	0.63 in	0.33 in	Clamp Screws	1.4 in	Anodized	IV MIL-DTL-38999 Series III		Unshielded
McGill Microwave Systems M85049/38-23W	Cable Clamp	23	180 °	Aluminum Alloy	Olive	0.82 in	0.38 in	Clamp Screws	1.77 in	Cadmium Nickel	IV MIL-DTL-38999 Series III	23
McGill Microwave Systems M85049/38-21N	Cable Clamp	21 G	180 °	Aluminum Alloy	Silver	0.698 in	0.343 in	Strain Relief	1.5 in	Electroless Nickel	IV MIL-DTL-38999 Series III		Unshielded
