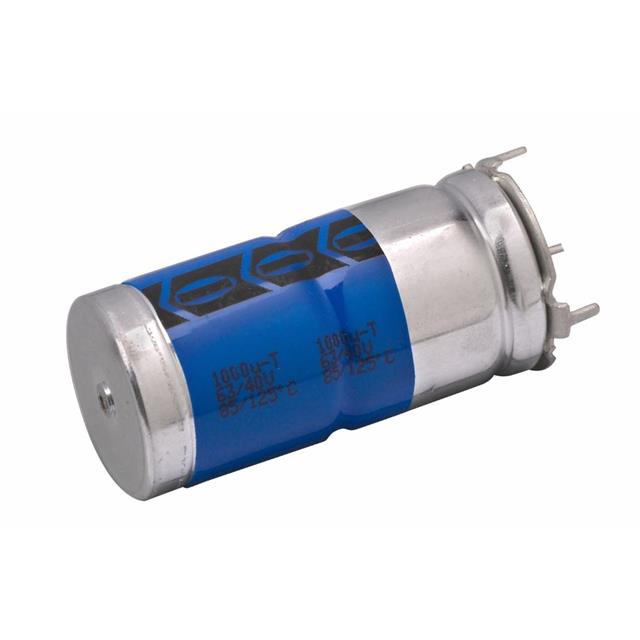

Specification	MAL211846222E3

Applications	Automotive
Capacitance	2200 ĄF
ESR (Equivalent Series Resistance)	185 mOhm
Height - Seated (Max)	1.299 in
Impedance	170 mOhm
Lifetime	8000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package Leads	4 Leads
Package Name	Radial, Can - Mounting Ring
Polarization	Polar
Ripple Current	1.24 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	25 VAC
