Description
General part information

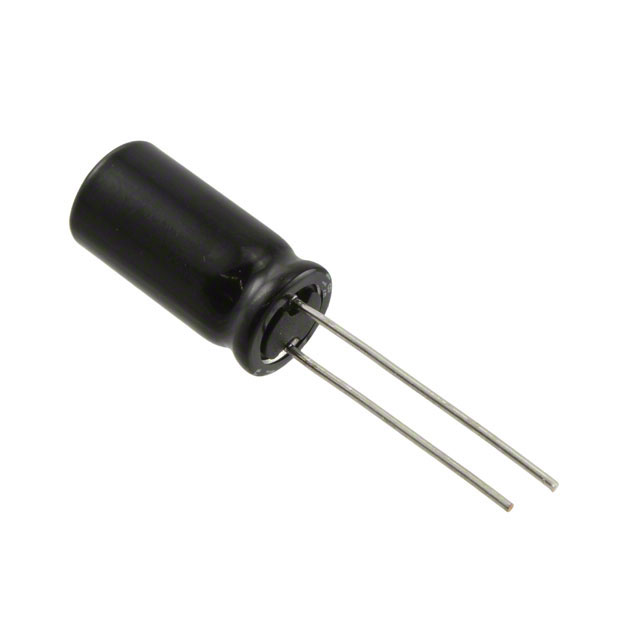

UDB1H4R7MPM1TD
4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UDB1H4R7MPM1TD |
|---|---|
| Applications | Audio |
| Capacitance | 4.7 µF |
| Height - Seated (Max) | 0.827 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Bi-Polar |
| Ripple Current | 480 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
