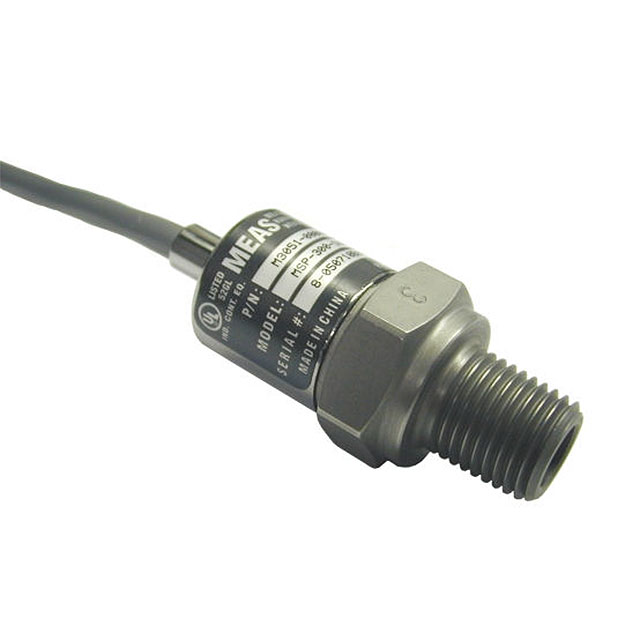

Specification	2000291

Accuracy	1 %
Applications	Industrial Automation
Maximum Pressure	15000 PSI
Operating Pressure	10000 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Output Type	Wheatstone Bridge
Output Voltage (Max)	100 mV
Output Voltage (Min)	0 V
Package / Case	Cylinder
Port Diameter	0.25 "
Port Feature	NPT
Port Gender	Male
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable
Voltage - Supply (Maximum)	12 V
Voltage - Supply (Minimum)	2.5 V

2000 Series

Part	Operating Pressure	Termination Style	Maximum Pressure	Package / Case	Output Current (Max)	Output Current (Min)	Port Diameter	Port Gender	Port Feature	Accuracy	Features	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output Type	Pressure Type	Operating Temperature (Max)	Operating Temperature (Min)	Port Style	Applications	Diameter - Protective Tube	Length - Protective Tube	Temperature Range (Min)	Temperature Range (Max)	Terminal Type	Length - Lead Wire	Conductor Type	Element Type	RTD Material	Resistance Tolerance (%)	Resistance	Mounting Type	Termination	Voltage - Supply	Output Voltage (Min)	Output Voltage (Max)
TE Connectivity AMP Connectors 2000987	100 PSI	Connector	200 PSI	Cylinder	20 mA	4 mA	0.4375 in	Male	UNF	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	100 °C	-40 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 2000486	100 PSI	Cable	200 PSI	Cylinder	20 mA	4 mA	0.25 "	Male	NPT	1.5 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	85 °C	-40 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 20009210-01																				3.18 mm	76.2 mm	-58 °F	250 °C	Exposed Lead Wires	35.98 in	Non-Grounded	K - Type
TE Connectivity AMP Connectors 2000984	25 PSI	Connector	50 PSI	Cylinder	20 mA	4 mA	0.4375 in	Male	UNF	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	100 °C	-40 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 20009209-01				Probe												250 °C	-50 °C											Platinum (Pt)	0.06 %	100 Ohms	Free Hanging	Wire Leads
TE Connectivity AMP Connectors 2000329	25 PSI	Cable/Wire Leads	50 PSI	Cylinder	20 mA	4 mA	0.25 "	Male	NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	85 °C	-20 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 2000989	500 PSI	Connector	1000 PSI	Cylinder	20 mA	4 mA	0.25 "	Male	NPT	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	100 °C	-40 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 2000473	100 PSI	Cable	200 PSI	Cylinder			0.25 "	Male	NPT	1.5 %	Amplified Output Temperature Compensated			Analog Voltage	Vented Gauge	85 °C	-40 °C	Threaded	Industrial Automation														5 VDC	0.5 V	4.5 V
TE Connectivity AMP Connectors 2000330	50 PSI	Cable/Wire Leads	100 PSI	Cylinder			0.25 "	Male	NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Voltage	Vented Gauge	85 °C	-20 °C	Threaded	Industrial Automation															1 V	5 V
TE Connectivity AMP Connectors 2000316	25 PSI	Cable/Wire Leads	50 PSI	Cylinder	20 mA	4 mA	0.25 "	Male	NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	85 °C	-20 °C	Threaded	Industrial Automation
