BUCHANAN WireMate Two-Piece Poke-In Series Series

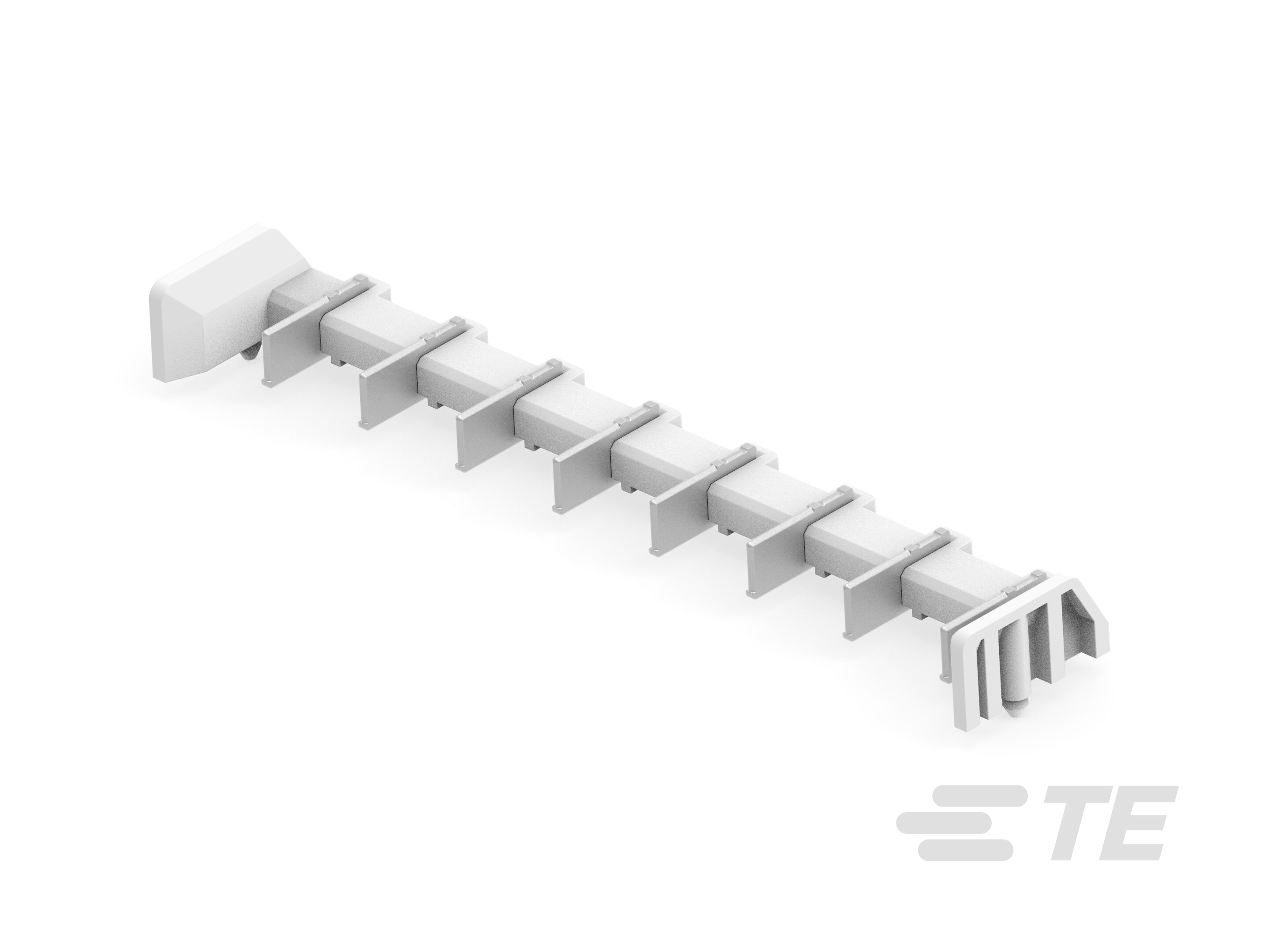

PCB Mount Header, Vertical, Board-to-Component, 8 Position, 8 mm [.31 in] Centerline, Unshrouded, Tin (Sn), BUCHANAN WireMate Two-Piece Poke-In Series

Technical Specifications

Parameters and characteristics for this part

Specification	2318136-8

Color	Natural
Contact Mating Finish	Tin
Features	Board Guide
Header Orientation	Right Angle
Header Orientation Angle	90 °
Mounting Type	Surface Mount
Number of Levels	1
Number of Positions	8
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.315 in
Positions Per Level	8
Termination Style	Solder
Type	Blade Pins, Header
Voltage - UL	250 V

BUCHANAN WireMate Two-Piece Poke-In Series Series

Part	Color	Features	Number of Positions	Pitch	Positions Per Level	Mounting Type	Type	Termination Style	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Header Orientation Angle	Header Orientation	Number of Levels	Plug Wire Entry Angle	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Housing Material	Material Flammability Rating	Insulation Height	Contact Material	Wire Strip Length
TE Connectivity AMP Connectors 2318136-5	Natural	Board Guide	5	0.315 in	5	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
TE Connectivity AMP Connectors 2318582-8	Natural	Lever Actuated	8	0.315 in	8	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG
TE Connectivity AMP Connectors 2318770-7	Natural	Board Guide	7	0.197 in	7	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
TE Connectivity AMP Connectors 2318582-7	Natural	Lever Actuated	7	0.315 in	7	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG
TE Connectivity AMP Connectors 2318136-6	Natural	Board Guide	6	0.315 in	6	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1						Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.252 in	Copper Alloy
TE Connectivity AMP Connectors 2319461-6	Natural	Lever Actuated	6	0.197 in	6	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2319461-4	Natural	Lever Actuated	4	0.197 in	4	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2319461-2	Natural	Lever Actuated	2	0.197 in	2	Panel Mount Snap-In	Blade Sockets Plug	Screwless	250 V	-40 °C	85 °C	Tin			1	180 °	0.82 mm²	0.2 mm²	24 AWG	18 AWG	Glass Filled PBT Polybutylene Terephthalate	UL94 V-0	0.669 in	Copper Alloy	10 mm
TE Connectivity AMP Connectors 2318770-4	Natural	Board Guide	4	0.197 in	4	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1						Glass Filled LCP Liquid Crystal Polymer	UL94 V-0	0.252 in	Copper Alloy
TE Connectivity AMP Connectors 2318136-2	Natural	Board Guide	2	0.315 in	2	Surface Mount	Blade Pins Header	Solder	250 V	-40 °C	85 °C	Tin	90 °	Right Angle	1
