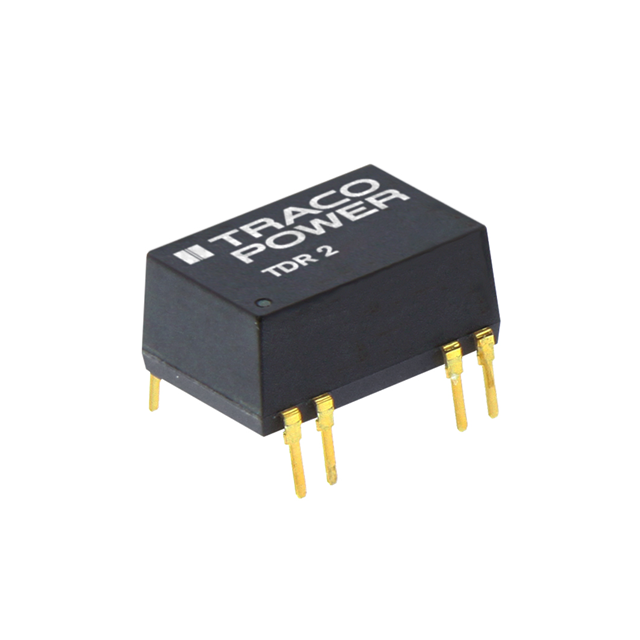

TDR 2-2411
ActiveTraco Power
MODULE DC-DC 24VIN 1-OUT 5V 0.4A 2W 7-PIN DIP MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDR 2-2411 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-DIP Module, 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 18.9 mm |
| Size / Dimension [x] | 0.74 in |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [z] | 8.7 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TDR 2-2411
Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input
