Description
General part information

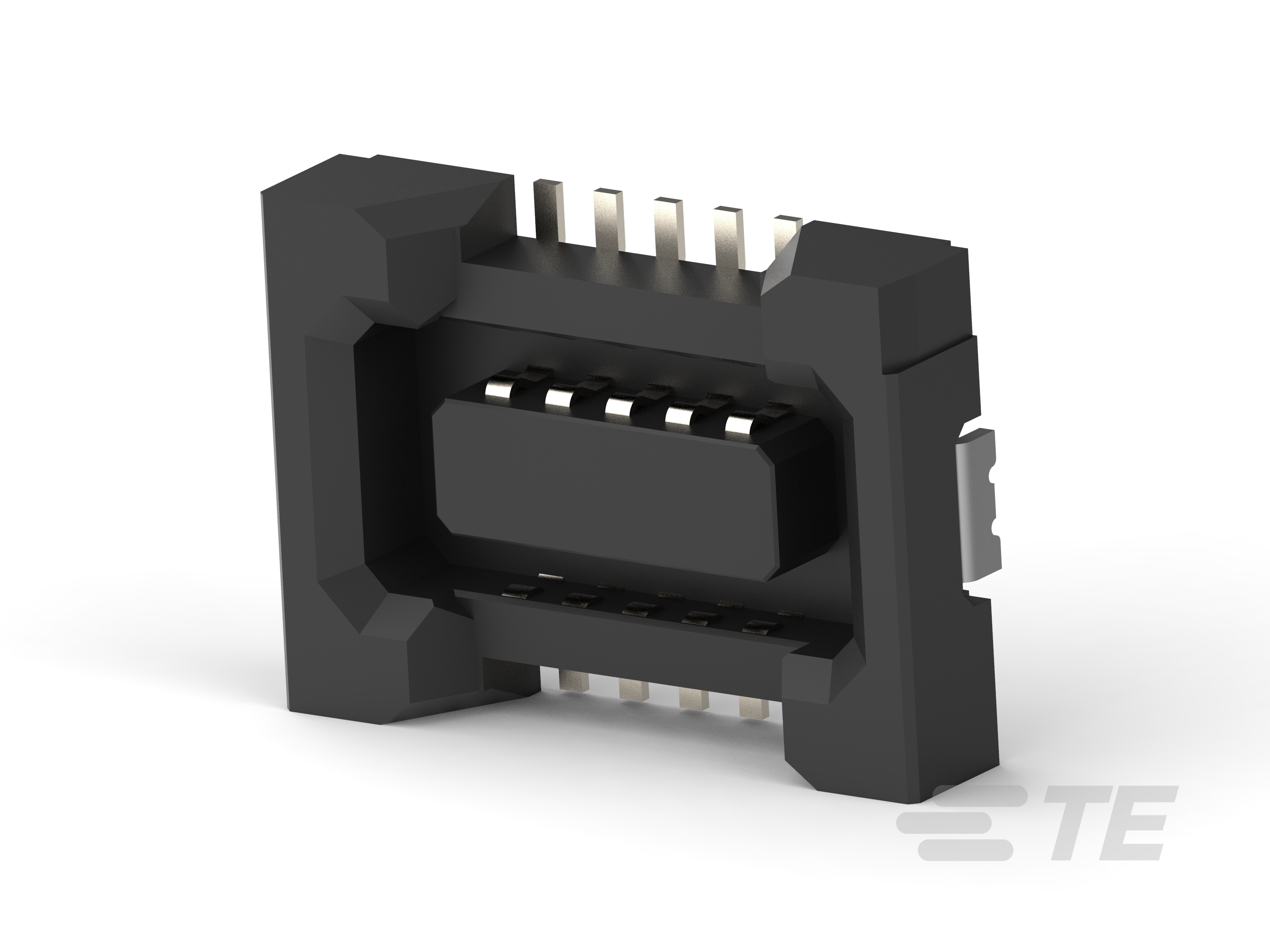

1-2201197-0
PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, .4 mm [.015 in] Centerline, Gold (Au), Surface Mount, Signal, Black, Tape & Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2201197-0 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 µin |
| Features | Solder Retention |
| Height Above Board | 0.038 in |
| Mated Stacking Height | 0.98 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch | 0.016 in |
