628-43W2222-3T1

Active

EDAC Inc.

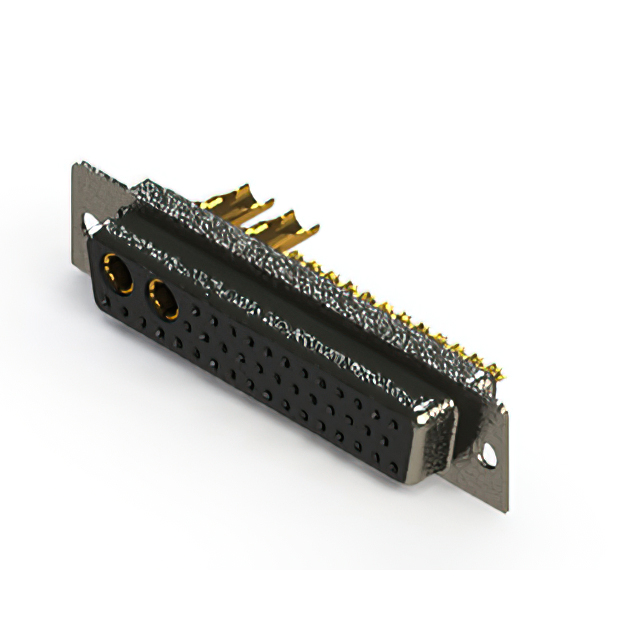

CONN D-SUB RCPT 43POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-43W2222-3T1

Active

EDAC Inc.

CONN D-SUB RCPT 43POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-43W2222-3T1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	2
Number of Positions [custom]	41
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 43W2
Voltage Rating	125 VDC

628-43W Series

...

Part	Connector Style	Contact Finish	Material Flammability Rating	Color	Mounting Type	Voltage Rating	Contact Material	Flange Feature	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Termination	Connector Type	Shell Size, Connector Layout	Dielectric Material	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Current Rating (Amps)	Current Rating (Amps)	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-43W2624-7N3	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C
EDAC Inc. 628-43W2624-1N1	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	Housing/Shell (Unthreaded)	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C	2	10A 5A
EDAC Inc. 628-43W2624-2N3	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C	2		5 A 20 A
EDAC Inc. 628-43W2624-1T5	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Board Lock Shielded	0.76 Ám	30 Áin		-55 °C	125 °C	2	10A 5A
EDAC Inc. 628-43W2622-5T2	Combo D-Sub	Gold	UL94 V-0	Black	Free Hanging (In-Line)	125 VDC	Copper Alloy	4-40 Board Side	3	2	41		Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin		-55 °C	125 °C
EDAC Inc. 628-43W2222-3T1	Combo D-Sub	Gold	UL94 V-0	Black	Free Hanging (In-Line)	125 VDC	Copper Alloy	Housing/Shell (Unthreaded)	3		41		Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded				-55 °C	125 °C	2		5 A 30 A	Flash
EDAC Inc. 628-43W2224-2N6	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Board Lock Shielded			Nickel Plated Steel	-55 °C	125 °C	2		5 A 20 A	Flash
EDAC Inc. 628-43W2624-4T4	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin		-55 °C	125 °C	2		5 A 40 A
EDAC Inc. 628-43W2624-5N4	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C
EDAC Inc. 628-43W2624-7NC	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy		3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C					M3	M3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 13.44

Description

General part information

628-43W Series

43 (41 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
