PE15A3268
ActivePasternack
5.5 DB NF, 10 DBM P1DB, 18 GHZ T
PE15A3268
ActivePasternack
5.5 DB NF, 10 DBM P1DB, 18 GHZ T
Description
General part information

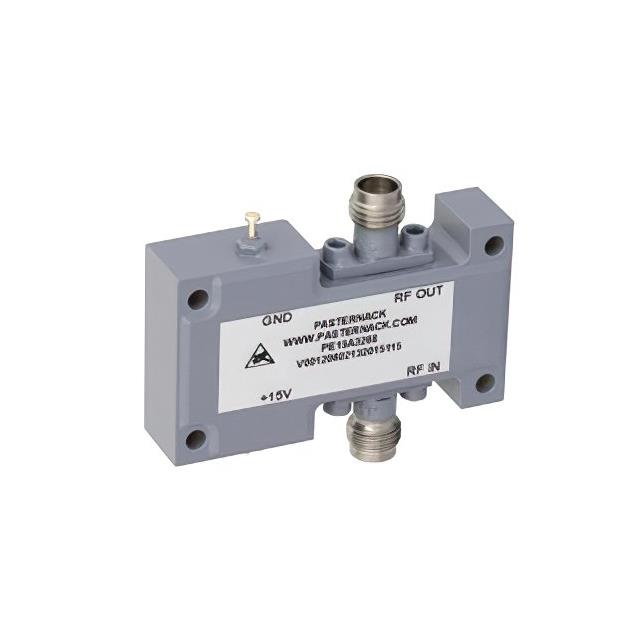

PE15A3268
RF Amplifier IC General Purpose 18GHz ~ 40GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A3268 |
|---|---|
| Current - Supply | 250 mA |
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 18 GHz |
| Gain | 21 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 5.5 dB |
| P1dB | 10 dBm |
| Package / Case | Module |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
