634-044-663-515
ActiveEDAC Inc.
634 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
634-044-663-515
ActiveEDAC Inc.
634 SERIES RIGHT ANGLE D-SUB REC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 634-044-663-515 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Mounting Brackets |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Solder |
634-044 Series
| Part | Dielectric Material | Mounting Type | Termination | Number of Positions | Features | Current Rating (Amps) | Connector Style | Flange Feature | Contact Type | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Contact Finish | Number of Rows | Material Flammability Rating | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Board Lock Mounting Brackets Shielded | 3 A | D-Sub High Density | Female Screwlock (4-40) Mating Side | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (M3) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.38 µm | 15 µin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (M3) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 125 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Board Lock Mounting Brackets Shielded | 3 A | D-Sub High Density | Female Screwlock (4-40) Mating Side | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (Unthreaded) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Female Screwlock (4-40) Mating Side | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (M3) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 8.89 mm | 0.35 in | Flash | ||
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Board Lock Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (Unthreaded) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 125 °C | -55 °C | 0.76 Ám | 30 Áin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Board Lock Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (4-40) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 125 °C | -55 °C | 0.38 µm | 15 µin | 8.89 mm | 0.35 in | |
EDAC Inc. | Polyester Thermoplastic | Board Edge Right Angle Through Hole | Solder | 44 | Mounting Brackets Shielded | 3 A | D-Sub High Density | Housing/Shell (4-40) | Signal | 3 | B DB | Nickel Plated Steel | Gold | 3 | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | 85 °C | -55 °C | 0.38 µm | 15 µin | 8.89 mm | 0.35 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 11.40 | |
Description
General part information
634-044 Series

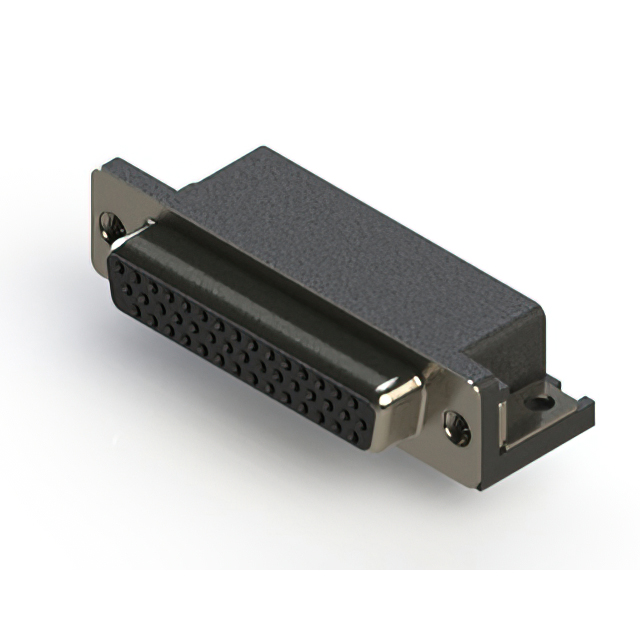

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
