1-106506-2
ActiveTE Connectivity AMP Connectors

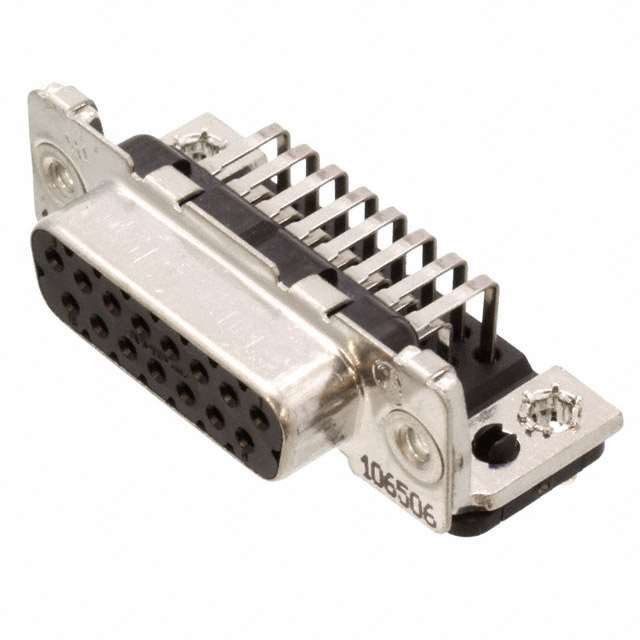

CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsAMPLIMITE Catalog
1-106506-2
ActiveTE Connectivity AMP Connectors
CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
DocumentsAMPLIMITE Catalog
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-106506-2 | 106506 Series |
|---|---|---|
| Backset Spacing | 0.406 in | 0.406 in |
| Backset Spacing | 10.3 mm | 10.3 mm |
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 6 A | 6 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Female Screwlock (4-40), Mating Side, Housing/Shell (4-40), Housing/Shell (M3), Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 | 15 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Size, Connector Layout | 2 | 2 |
| Termination | Solder | Solder |
| Voltage Rating | 125 VDC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.64 | |
| 10 | $ 4.67 | |||
| 25 | $ 4.34 | |||
| 45 | $ 4.13 | |||
| 90 | $ 3.91 | |||
| 270 | $ 3.57 | |||
| 450 | $ 3.43 | |||
| 945 | $ 3.23 | |||
| 2430 | $ 2.99 | |||
106506 Series
CONN D-SUB RCPT 15POS R/A SLDR
| Part | Flange Feature | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Material Flammability Rating | Number of Rows | Voltage Rating | Shell Size, Connector Layout | Current Rating (Amps) | Dielectric Material | Contact Type | Contact Finish | Number of Positions | Color | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Backset Spacing | Backset Spacing | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-106506-2 | Female Screwlock (4-40), Mating Side | Receptacle, Female Sockets | 105 ░C | -55 °C | Solder | UL94 V-0 | 2 | 125 VDC | 2 | 6 A | Polyester, Glass Filled | Signal | Gold | 15 | Black | Phosphor Bronze | Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | 0.406 in | 10.3 mm | D-Sub |
TE Connectivity AMP Connectors 6-106506-2 | Housing/Shell (4-40) | Receptacle, Female Sockets | 105 ░C | -55 °C | Solder | UL94 V-0 | 2 | 125 VDC | 2 | 6 A | Polyester, Glass Filled | Signal | Gold | 15 | Black | Phosphor Bronze | Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | 0.406 in | 10.3 mm | D-Sub |
TE Connectivity AMP Connectors 2-106506-2 | Housing/Shell (M3) | Receptacle, Female Sockets | 105 ░C | -55 °C | Solder | UL94 V-0 | 2 | 125 VDC | 2 | 6 A | Polyester, Glass Filled | Signal | Gold | 15 | Black | Phosphor Bronze | Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | 0.406 in | 10.3 mm | D-Sub |
TE Connectivity AMP Connectors 5-106506-2 | Housing/Shell (Unthreaded) | Receptacle, Female Sockets | 105 ░C | -55 °C | Solder | UL94 V-0 | 2 | 125 VDC | 2 | 6 A | Polyester, Glass Filled | Signal | Gold | 15 | Black | Phosphor Bronze | Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | 0.406 in | 10.3 mm | D-Sub |
TE Connectivity AMP Connectors 1-106506-2 | Housing/Shell (4-40) | Receptacle, Female Sockets | 105 ░C | -55 °C | Solder | UL94 V-0 | 2 | 125 VDC | 2 | 6 A | Polyester, Glass Filled | Signal | Gold | 15 | Black | Phosphor Bronze | Panel Mount, Right Angle, Through Hole | 0.76 Ám | 30 Áin | 0.406 in | 10.3 mm | D-Sub |
Description
General part information
106506 Series
15 Position D-Sub Receptacle, Female Sockets Connector
