CLM-9-30-90-18-TC62-F7-2
ActiveLuminus Devices Inc.
CLM-9-30-90-18-TC62-F7-2
CLM-9-30-90-18-TC62-F7-2
ActiveLuminus Devices Inc.
CLM-9-30-90-18-TC62-F7-2
Description
General part information
CLM-9-30-90-18-TC62-F7-2

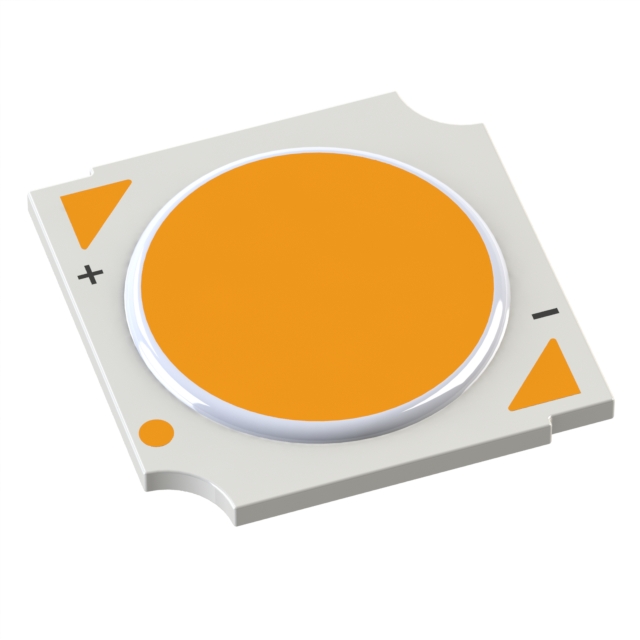

LED Lighting COBs Engines Modules Chip On Board (COB) CLM-9 Gen 6 White, Warm Square
Technical Specifications
Parameters and characteristics for this part
| Specification | CLM-9-30-90-18-TC62-F7-2 |
|---|---|
| CCT (K) | 3000 K |
| CCT Description | 2-Step MacAdam Ellipse |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max | 1.6 A |
| Current - Test | 500 mA |
| Height | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) Diameter | 9.6 mm |
| Lumens/Watt | 143 lm/W |
| Luminous Flux (Typical) | 1170 lm |
| Size / Dimension Length | 13.5 mm |
| Size / Dimension Width | 13.5 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 16.4 V |
