NSYTRV22BL
ActiveSCHNEIDER ELECTRIC
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 26 AWG, 12 AWG, 4 MM², SCREW, 24 A
NSYTRV22BL
ActiveSCHNEIDER ELECTRIC
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 26 AWG, 12 AWG, 4 MM², SCREW, 24 A
Description
General part information
NSYTRV22BL

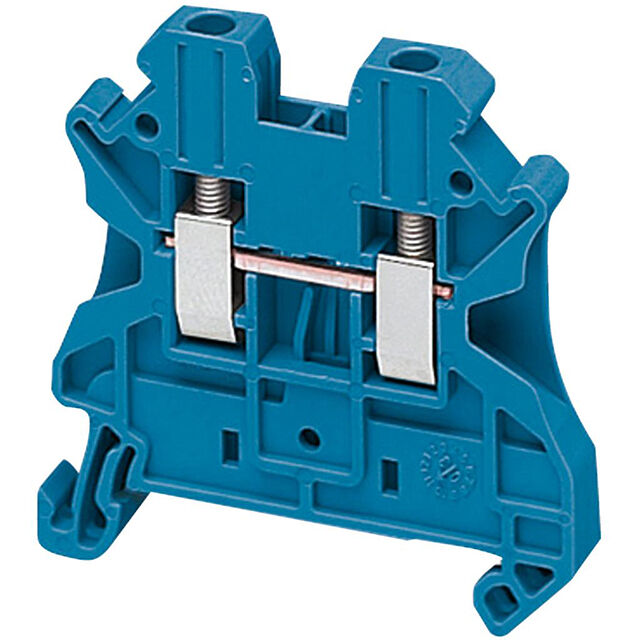

Terminal Block Connector 2 Position Feed Through Blue
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRV22BL |
|---|---|
| Color | Blue |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 9 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
