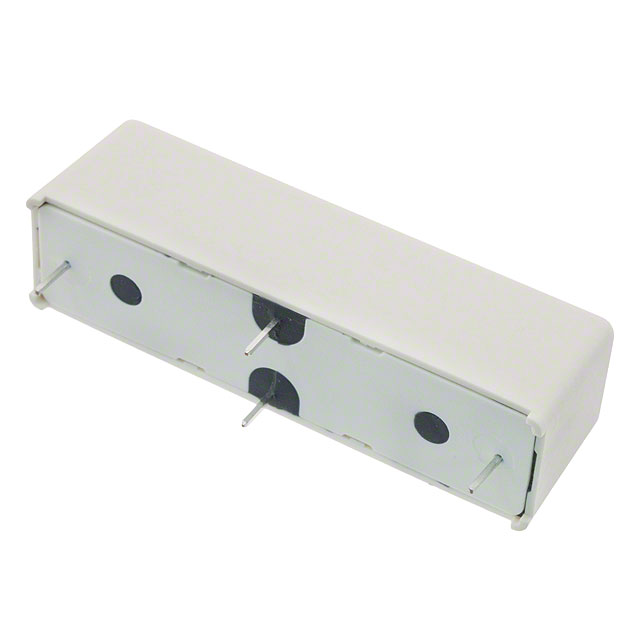

DBT71210
ActiveSensata-Crydom
RELAY REED SPST-NC 2A 12V
DBT71210
ActiveSensata-Crydom
RELAY REED SPST-NC 2A 12V
Description
General part information
DBT71210
RELAY REED SPST-NC 2A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | DBT71210 |
|---|---|
| Coil Current | 50 mA |
| Coil Resistance | 240 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NC |
| Contact Material | Tungsten (W) |
| Contact Rating (Current) | 2 A |
| Form B Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.25 VDC |
| Operate Time | 2 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 3 ms |
| Switching Voltage AC (Max) | 7000 VAC |
| Switching Voltage DC (Max) | 7000 VDC |
| Termination Style | PC Pin |
