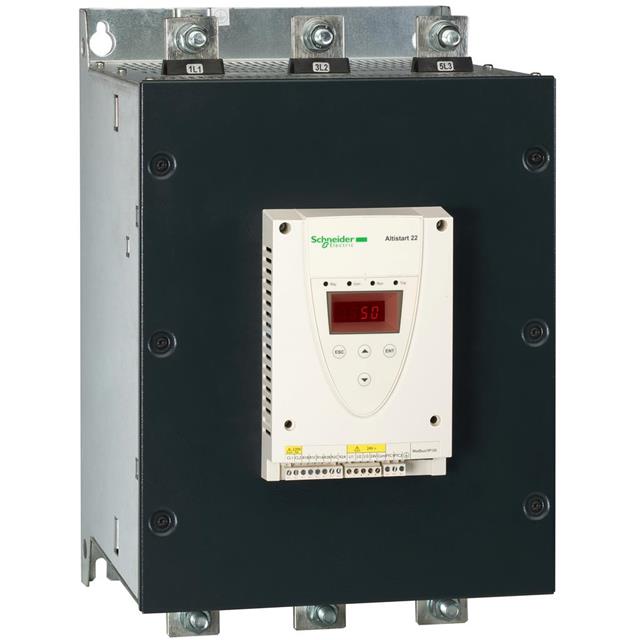

ATS22C59S6
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER, 3-PHASE, 590 A, 230 TO 600 VAC, 400 KW, IP00, ALTISTART 22 SERIES
ATS22C59S6
ObsoleteSCHNEIDER ELECTRIC
SOFT STARTER, 3-PHASE, 590 A, 230 TO 600 VAC, 400 KW, IP00, ALTISTART 22 SERIES
Description
General part information
ATS22C59S6
Soft Start / Stop 195V ~ 660V Supply 590A 230 ~ 600V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS22C59S6 |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 590 A |
| Interface | RS-485 |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Module |
| Voltage - Load (Max) | 600 V |
| Voltage - Load (Min) | 230 V |
| Voltage - Supply (Maximum) | 660 VAC |
| Voltage - Supply (Minimum) | 195 V |
| Wattage - Load | 1.1 kW |
