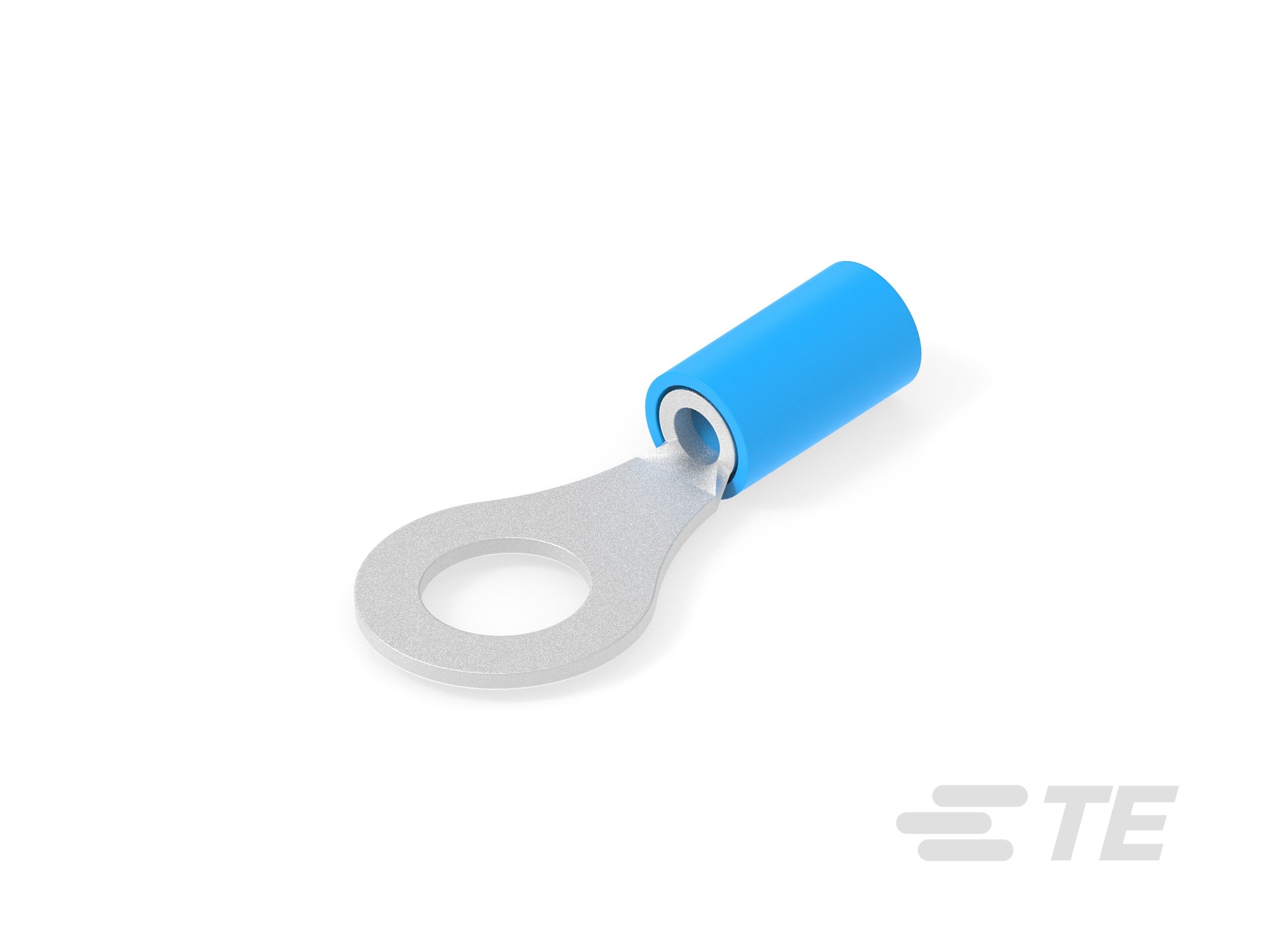

TERMINAL,PIDG R 16-14 1/4-321045

321045

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #1/4

Find alt
TERMINAL,PIDG R 16-14 1/4-321045

321045

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #1/4

Find alt

Description

General part information

321045

Closed Ring Tongue Terminal, 16 – 14 AWG, M6 Stud, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification321045
ColorBlue
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall1.078 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.25 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.469 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
