2195935-2
ActiveTE Connectivity AMP Connectors

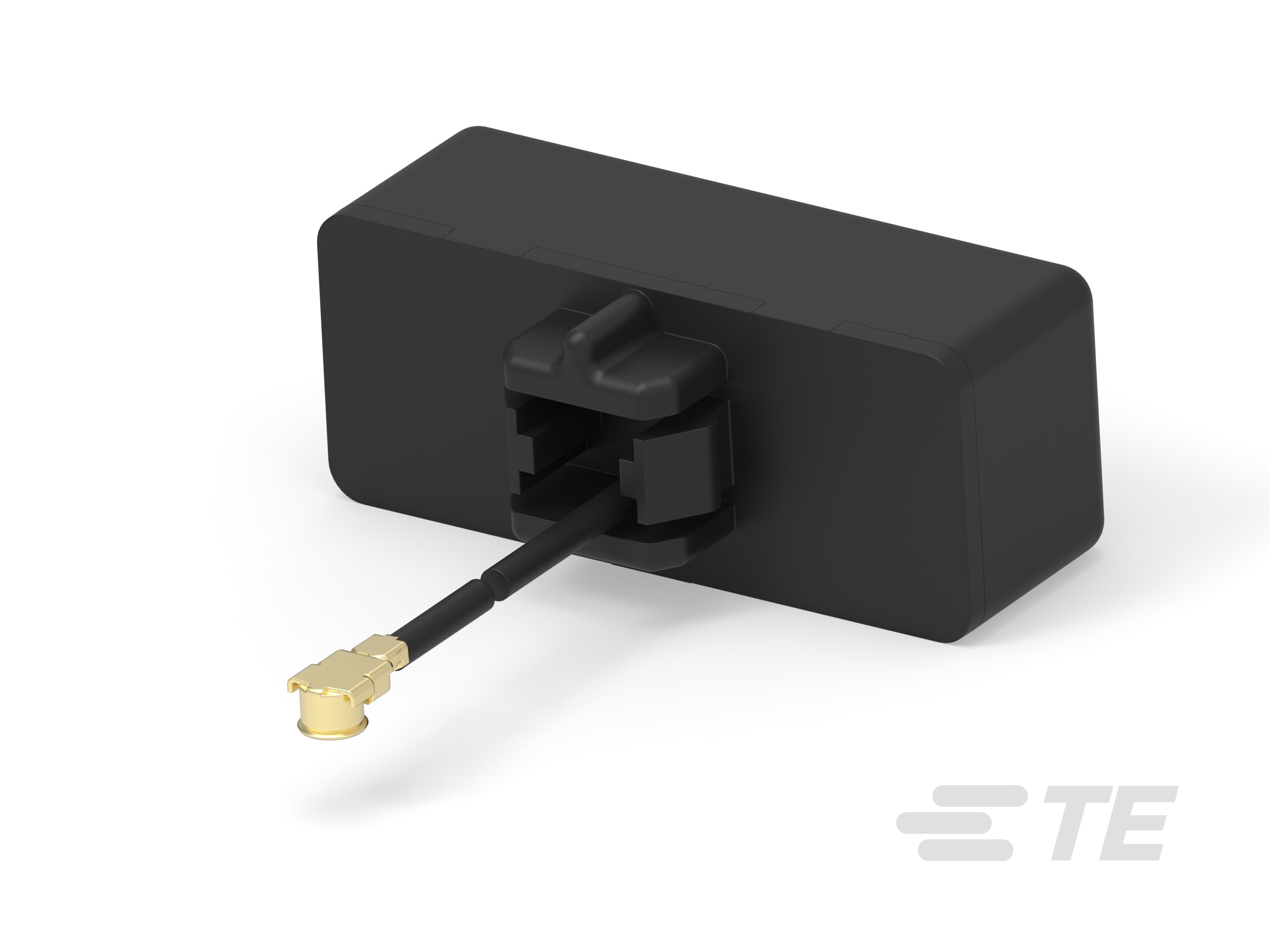

UAM ASSEMBLY 130MM MHF WI-FI 6E
2195935-2
ActiveTE Connectivity AMP Connectors
UAM ASSEMBLY 130MM MHF WI-FI 6E
Description
General part information
2195935-2
Stamped Metal Antenna, Triple Band, Wi-Fi, External Mount, Snap-In, MHF, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 2195935-2 |
|---|---|
| Antenna Type | Module |
| Applications | Wi-Fi, Bluetooth, Zigbee™ |
| Features | Cable, 130mm |
| Frequency (Center/Band) | 6.525GHz, 2.45GHz, 5.5125GHz |
| Frequency (Center/Band) - 1 | 2.45 GHz |
| Frequency (Center/Band) - 2 | 5.5125 GHz |
| Frequency (Center/Band) - 3 | 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.875 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 3.4 dBi, 0.4 dBi, 2 dBi |
| Height (Max) | 0.472 in |
| Mounting Type | Snap-In |
| Number of Bands | 3 |
| Power - Max | 10 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | MHF |
| VSWR | 1.9, 1.8, 2 |
