B84115E0000B110
ActiveEPCOS - TDK Electronics

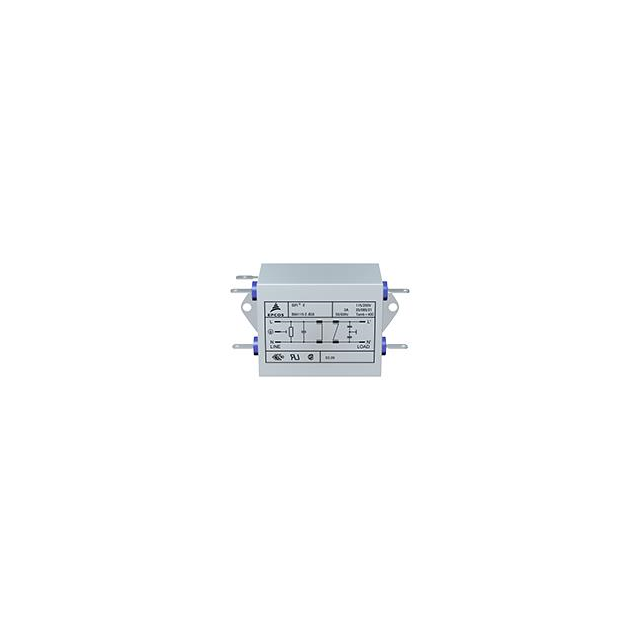

LINE FILTER 250VAC/VDC 10A CHASS
B84115E0000B110
ActiveEPCOS - TDK Electronics
LINE FILTER 250VAC/VDC 10A CHASS
Description
General part information
B84115E0000B110
Single Phase EMC/EMI Line Filter 10 A 250V 250V 50 ~ 60Hz Two Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | B84115E0000B110 |
|---|---|
| Applications | Medical |
| Approval Agency | CSA, ENEC, UL |
| Configuration | Two Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
