3-1971772-7
ActiveTE Connectivity AMP Connectors

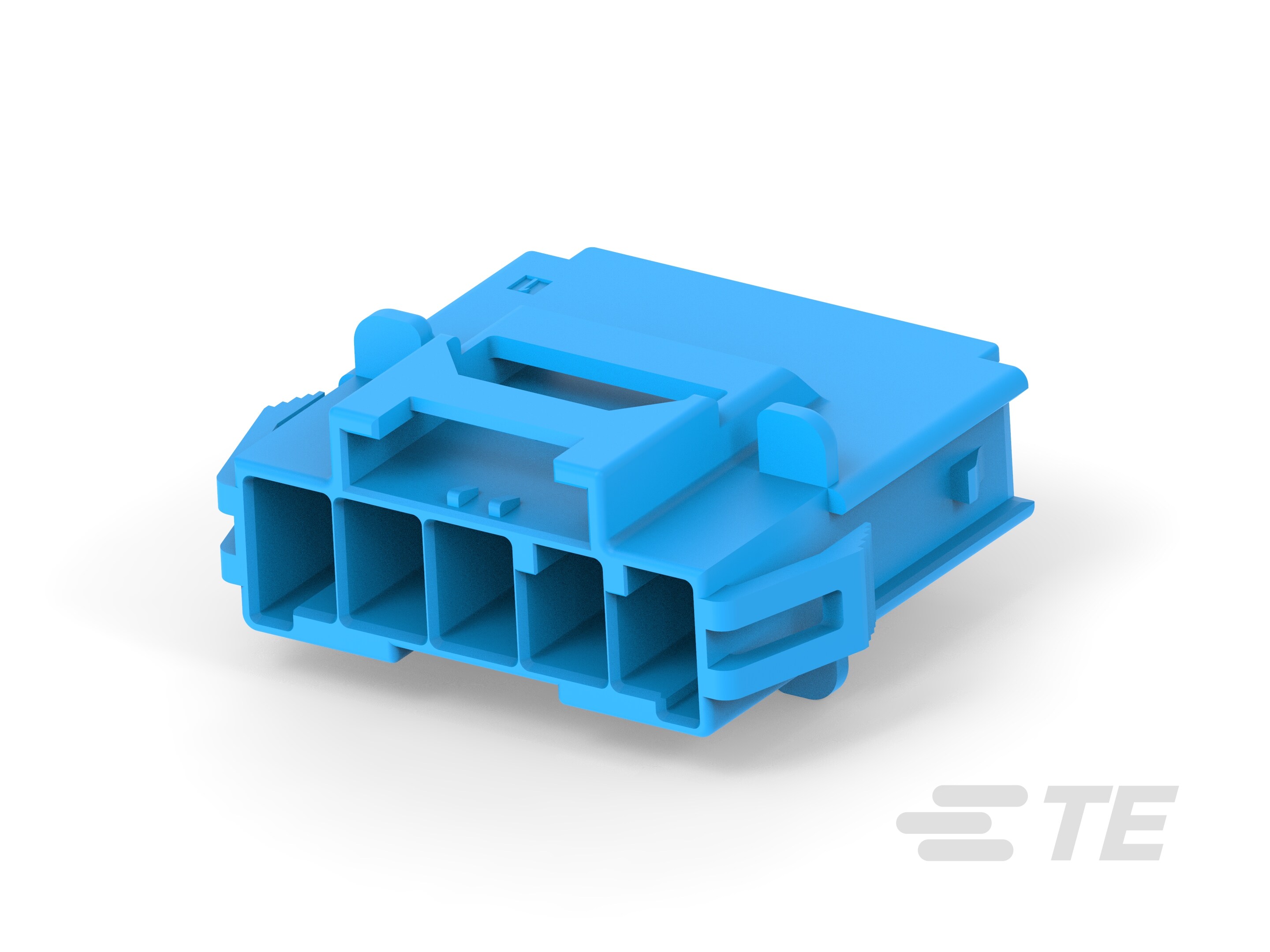

PTL 1X5 CAP PANEL MT STD TEMP KEY C BLU
3-1971772-7
ActiveTE Connectivity AMP Connectors
PTL 1X5 CAP PANEL MT STD TEMP KEY C BLU
Description
General part information
3-1971772-7
5 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1971772-7 |
|---|---|
| Color | Blue |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
