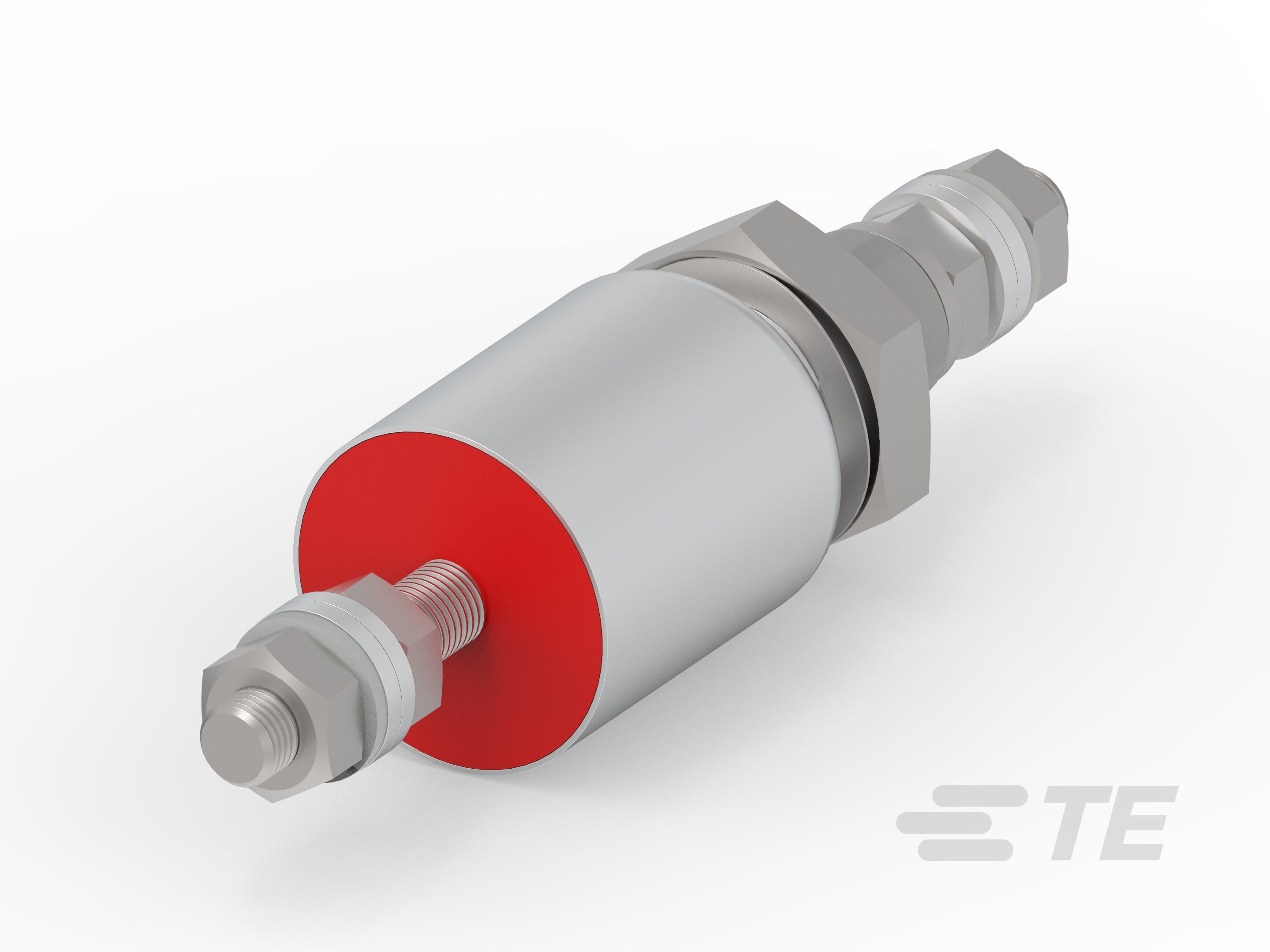

Specification	FN7560-63-M6

Capacitance	10000 pF
Current	63 A
DC Resistance (DCR) (Max)	0.3 mOhm
DC Resistance (DCR) (Typ)	0.3 mOhm
Mounting Type	Bolt Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	Axial - Threaded Terminals
Ratings	Y4
Size / Dimension Diameter	0.984 in
Size / Dimension Length	3.78 in
Tolerance	20 %
Type	Feed Through
Voltage - Rated	650 V

Schaffner FN756X Series

Part	Voltage - Rated	Tolerance	Package / Case	Ratings	Capacitance	Current	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Typ)	Thread Pitch	Thread Diameter	Size / Dimension Diameter	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Type	Mounting Type
TE Connectivity AMP Connectors FN7561-200-M10	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	200 A	0.16 mOhm	0.16 mOhm	1 mm	24 mm	1.26 in	5.118 in	100 °C	-40 °C
TE Connectivity AMP Connectors FN7560-10-M3	650 V	20 %	Axial - Threaded Terminals	Y4	10000 pF	10 A	0.8 mOhm	0.8 mOhm	1 mm	10 mm	0.591 in	2.244 in	100 °C	-40 °C	Feed Through
TE Connectivity AMP Connectors FN7563-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	32 A	0.63 mOhm	0.63 mOhm	1 mm	20 mm	1.26 in	3.228 in	100 °C	-40 °C
TE Connectivity AMP Connectors FN7562-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	100 A	0.23 mOhm	0.23 mOhm	1 mm	20 mm	1.26 in	4.449 in	100 °C	-40 °C	Feed Through
TE Connectivity AMP Connectors FN7563-63-M6	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	63 A	0.43 mOhm	0.43 mOhm	1 mm	20 mm	1.26 in	3.898 in	100 °C	-40 °C	Feed Through
TE Connectivity AMP Connectors FN7561-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4	0.1 µF	100 A	0.23 mOhm	0.23 mOhm	1 mm	20 mm	1.26 in	4.449 in	100 °C	-40 °C	Feed Through
TE Connectivity AMP Connectors FN7562-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	0.1 µF	32 A	0.62 mOhm	0.62 mOhm			0.787 in	1.654 in	100 °C	-40 °C		Bolt Mount
TE Connectivity AMP Connectors FN7561-200-M10	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	200 A	0.16 mOhm	0.16 mOhm	1 mm	24 mm	1.26 in	5.118 in	100 °C	-40 °C	Feed Through
TE Connectivity AMP Connectors FN7560-100-M8	650 V	20 %	Axial - Threaded Terminals	Y4	47 nF	100 A	0.23 mOhm	0.23 mOhm			1.26 in	4.449 in	100 °C	-40 °C	Feed Through	Bolt Mount
TE Connectivity AMP Connectors FN7563-32-M4	650 V	20 %	Axial - Threaded Terminals	Y4	0.47 µF	32 A	0.63 mOhm	0.63 mOhm	1 mm	20 mm	1.26 in	3.228 in	100 °C	-40 °C	Feed Through
