2081553-1
ActiveTE Connectivity AMP Connectors

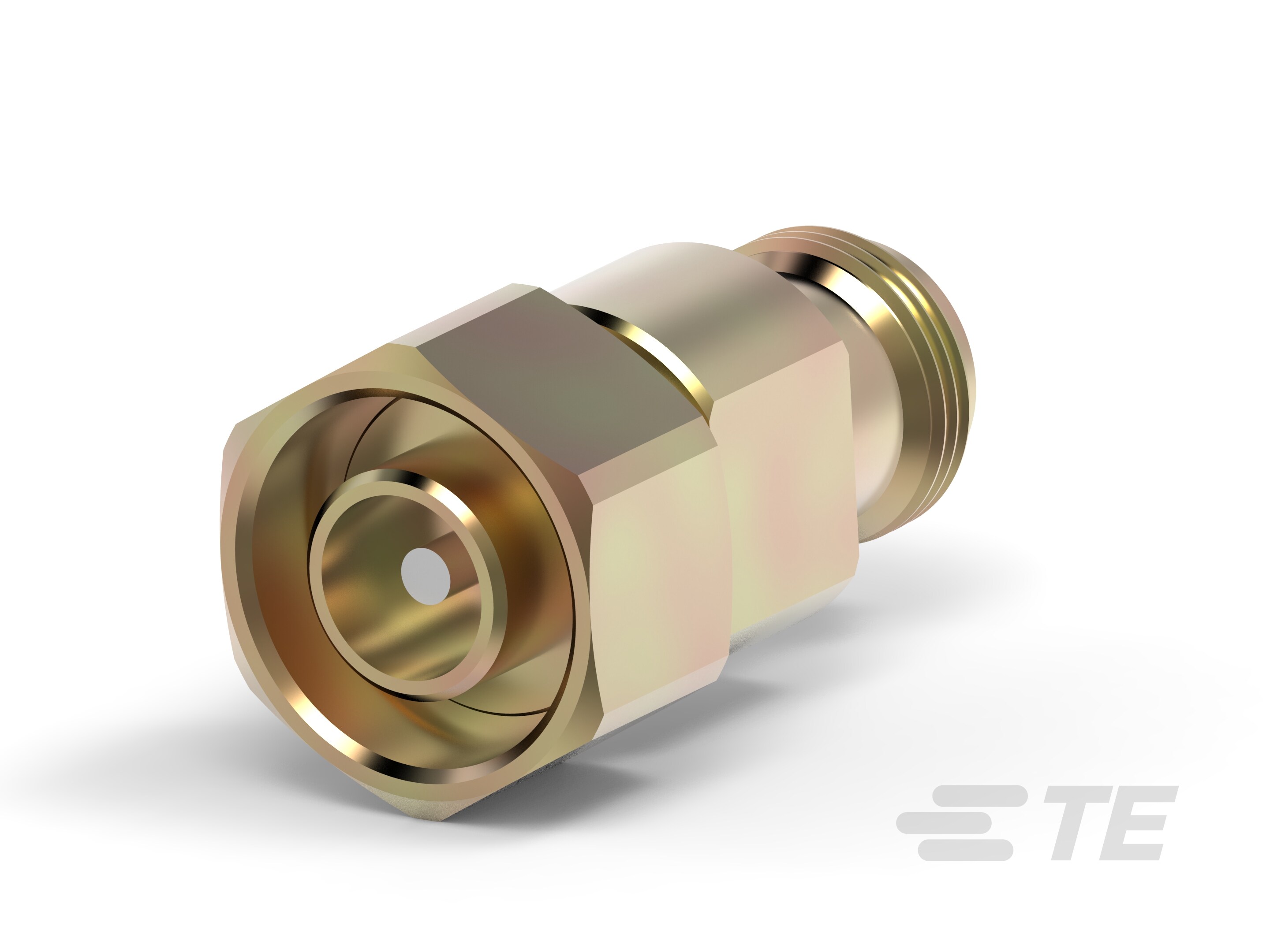

ADAPTOR 4.1-9.5 PLUG TO N JACK
2081553-1
ActiveTE Connectivity AMP Connectors
ADAPTOR 4.1-9.5 PLUG TO N JACK
Description
General part information
2081553-1
Between Series Adapter, Straight, N Type Side A, Jack Side A, 4.1/9.5 Side B, Plug Side B, 1 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2081553-1 |
|---|---|
| Adapter Series | N to 4.1/9.5 |
| Adapter Type | Plug to Jack |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | 4.1/9.5 Plug |
| Fastening Type | Threaded |
| Frequency - Max | 8 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
