Description

General part information

PS615HG20AOEM

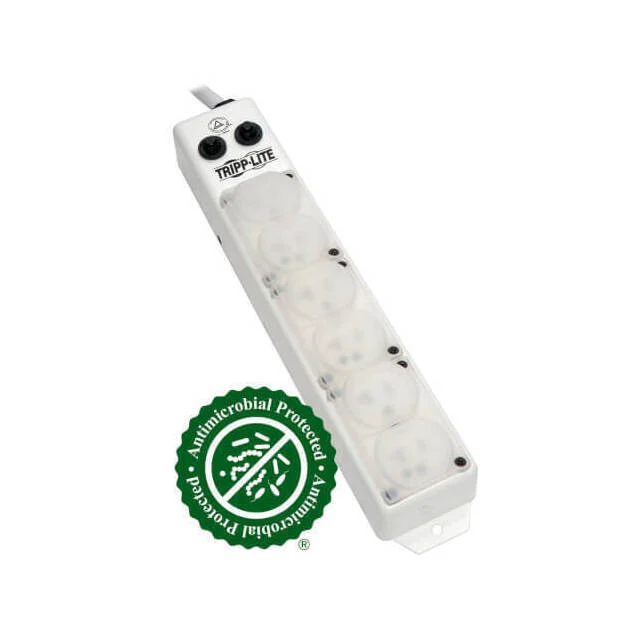

The PS615HG20AOEM is a 6-outlet hospital-grade Power Strip with 15ft cord. The medical-grade power strip supplies power to movable plug-connected components mounted to a rack, table or pedestal in operating rooms, patient-care areas, therapy rooms, imaging environments and administrative areas. This 120V power strip features a NEMA 5-20P-HG hospital-grade plug and six NEMA 5-20R-HG hospital-grade outlets. Two resettable built-in 20A circuit breakers control power to all outlets and protect the power strip against overloads. Switchless design prevents the unit from being accidentally shut off. Locking safety covers are integrated to protect unused outlets from debris and damage. Long 15ft 20A AC power cord gives you flexibility to roll the equipment where it's most needed. Mounting tabs and flanges let you install the PS615HG20AOEM on a wide variety of surfaces, such as IV poles, mobile carts, crash carts and mobile medical workstations.

Technical Specifications

Parameters and characteristics for this part

SpecificationPS615HG20AOEM
AC Outlets (Count)6 count
Approval AgencyUL, TUV
Connector - AC InputNEMA 5-20P
Connector - AC OutputNEMA 5-20R
Connector - AC Output Quantity (NEMA 5-20R)6 pcs
Cord Length15 ft
Current - Max20 A
Housing MaterialMetal
Mounting TypeChassis Mount
Overload ProtectionCircuit Breaker(s)
TypeOutlet Strip, Power Strip
Voltage - Input120 VAC
