TBL-0015-750-02GR
ActiveSame Sky (Formerly CUI Devices)
TERMINAL BLOCK, 1-6 POLES,GREEN,

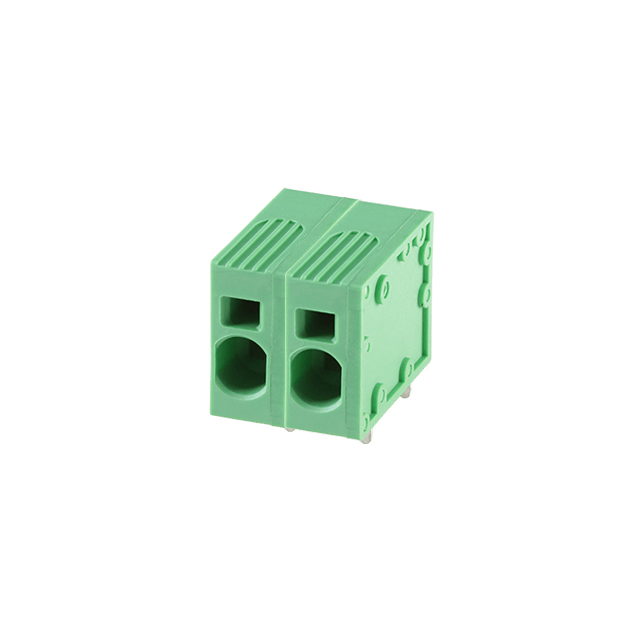

TBL-0015-750-02GR
ActiveSame Sky (Formerly CUI Devices)
TERMINAL BLOCK, 1-6 POLES,GREEN,
Description
General part information
TBL-0015-750-02GR
2 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TBL-0015-750-02GR |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Current | 40 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.295 in |
| Plating | Tin Plated |
| Positions Per Level | 2 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
