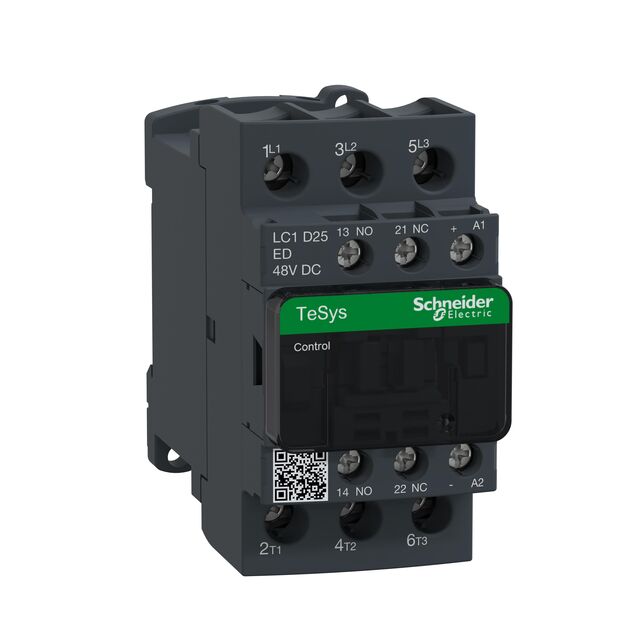

LC1D25ED
ActiveSCHNEIDER ELECTRIC
TESYS3P CTR 25A AC3 11KW1NO1NC48
LC1D25ED
ActiveSCHNEIDER ELECTRIC
TESYS3P CTR 25A AC3 11KW1NO1NC48
Description
General part information
LC1D25ED
TESYS3P CTR 25A AC3 11KW1NO1NC48
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D25ED |
|---|---|
| Coil Voltage | 48 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 25 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 33.6 VAC |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 72.45 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
