USR2G-2KX1
ObsoleteBourns Inc.
RES 2K OHM 0.01% 0.6W RADIAL
USR2G-2KX1
ObsoleteBourns Inc.
RES 2K OHM 0.01% 0.6W RADIAL
Description
General part information
USR2G-2KX1

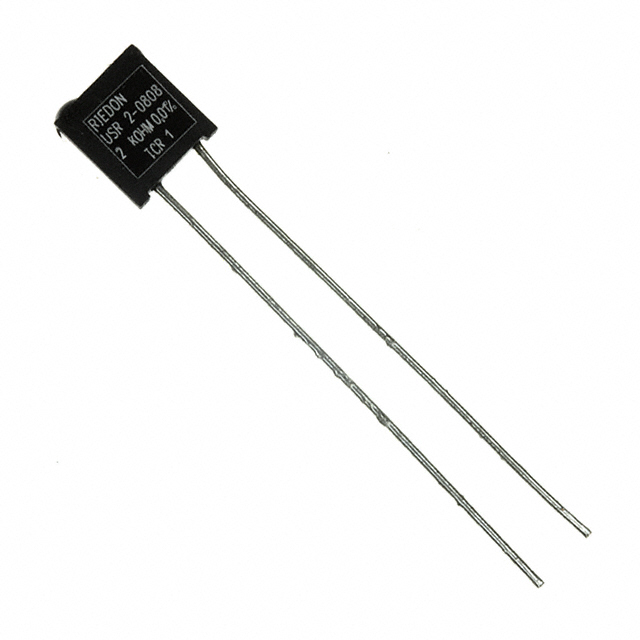

2 kOhms ±0.01% 0.6W Through Hole Resistor Radial Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | USR2G-2KX1 |
|---|---|
| Composition | Metal Foil |
| Height - Seated (Max) | 0.335 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 600 mW |
| Resistance | 2 kOhm |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.105 in |
| Temperature Coefficient | 1 ppm/°C |
| Tolerance | 0.01 % |
