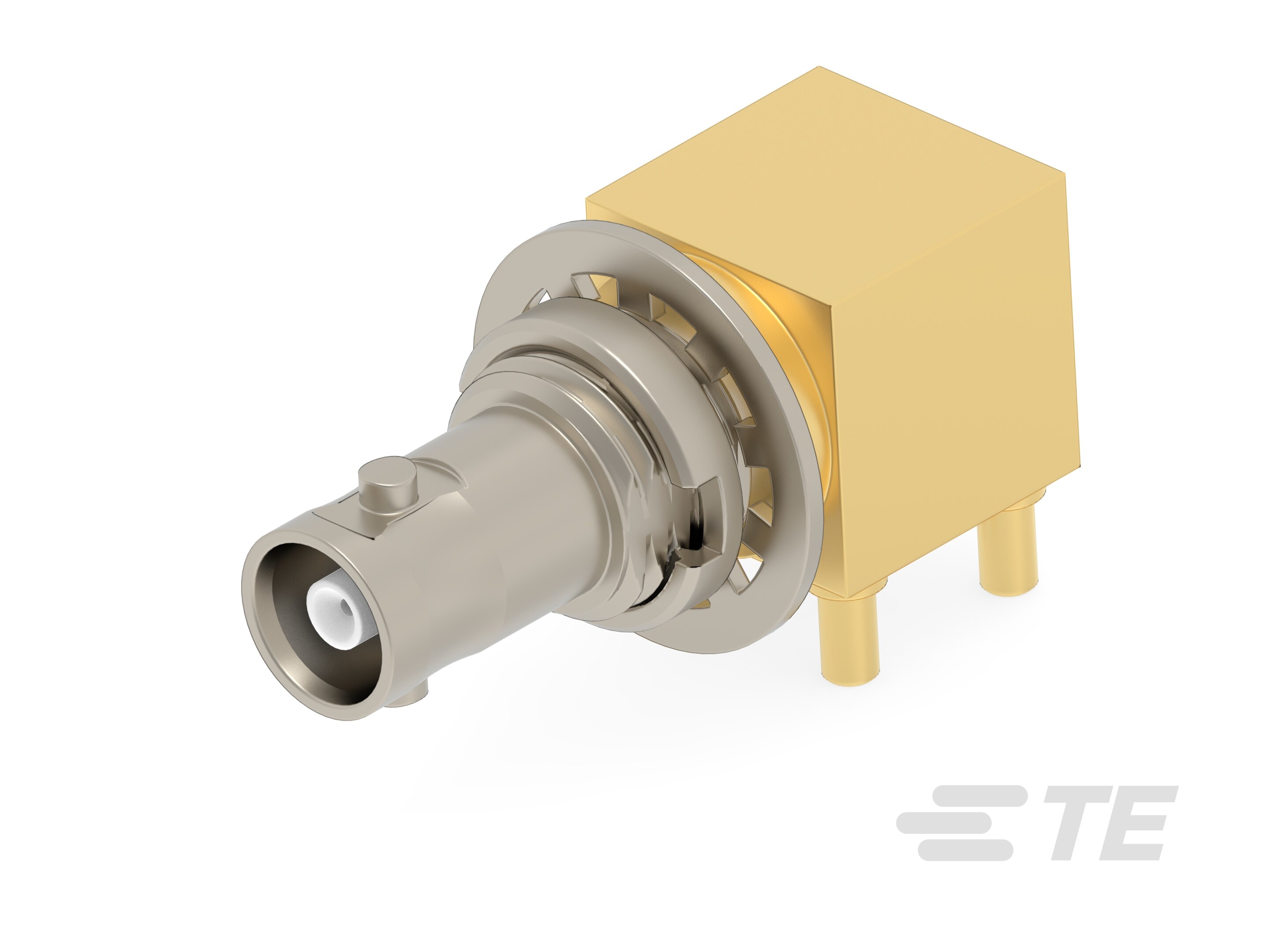

HIGH DENSITY BNC RA JK,BKD,PCB,12GHZ-2446154-1

2446154-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, HD BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE

Find alt
HIGH DENSITY BNC RA JK,BKD,PCB,12GHZ-2446154-1

2446154-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, HD BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE

Find alt

Description

General part information

2446154-1

High Density BNC Connector, Jack, 75 ohm, Bayonet, 0 – 12 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification2446154-1
Center Contact MaterialBeryllium Copper
Connector StyleHD, BNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Fastening TypeBayonet Lock
Frequency - Max12 Gbps
Housing ColorGold
Impedance75 Ohm
Mounting FeatureBulkhead, Front Side Nut
Mounting TypePanel Mount, Through Hole, Right Angle
Number of Ports1
Shield TerminationSolder
