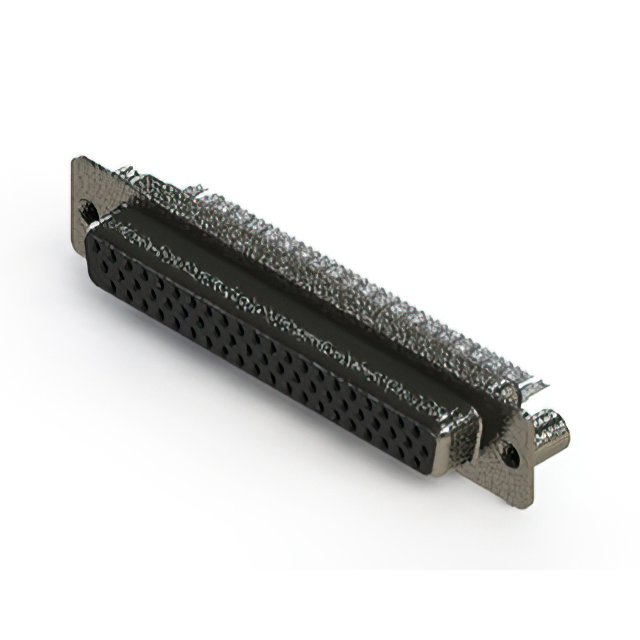

638-062-232-249

Active

EDAC Inc.

CONN D-SUB HD RCPT 62P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-062-232-249

Active

EDAC Inc.

CONN D-SUB HD RCPT 62P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-062-232-249

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4

638-062 Series

...

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Dielectric Material	Features	Contact Finish Thickness	Number of Rows	Color	Flange Feature	Connector Type	Contact Finish	Shell Size, Connector Layout	Termination	Mounting Type	Connector Style	Contact Type	Contact Material	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 638-062-231-273	62	-55 °C	125 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded	Flash	3	Black	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy
EDAC Inc. 638-062-230-047	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Board Lock Shielded	Flash	3	Black	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy	Nickel Plated Steel
EDAC Inc. 638-062-232-042	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded	Flash	3	Black	Housing/Shell (4-40)	Receptacle Female Sockets	Gold	4		Free Hanging (In-Line)	D-Sub High Density	Signal	Copper Alloy	Nickel Plated Steel
EDAC Inc. 638-062-232-047	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Board Lock Shielded	Flash	3	Black	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Gold	4		Free Hanging (In-Line)	D-Sub High Density	Signal	Copper Alloy	Nickel Plated Steel
EDAC Inc. 638-062-232-249	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded	Flash	3	Black	Housing/Shell (4-40)	Receptacle Female Sockets	Gold	4		Free Hanging (In-Line)	D-Sub High Density	Signal	Copper Alloy
EDAC Inc. 638-062-331-256	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Board Lock Shielded		3	Black	Housing/Shell (4-40)	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy		15 µin	0.38 µm
EDAC Inc. 638-062-632-241	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded		3	Black	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Gold	4		Free Hanging (In-Line)	D-Sub High Density	Signal	Copper Alloy		30 Áin	0.76 Ám
EDAC Inc. 638-062-630-049	62	-55 °C	85 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded		3	Black	Housing/Shell (4-40)	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 638-062-630-261	62	-55 °C	125 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded		3	Black	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy		30 Áin	0.76 Ám
EDAC Inc. 638-062-231-271	62	-55 °C	125 °C	UL94 V-0	3 A	Polyester Thermoplastic	Shielded	Flash	3	Black	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Gold	4	Solder	Through Hole	D-Sub High Density	Signal	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.67

Description

General part information

638-062 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
