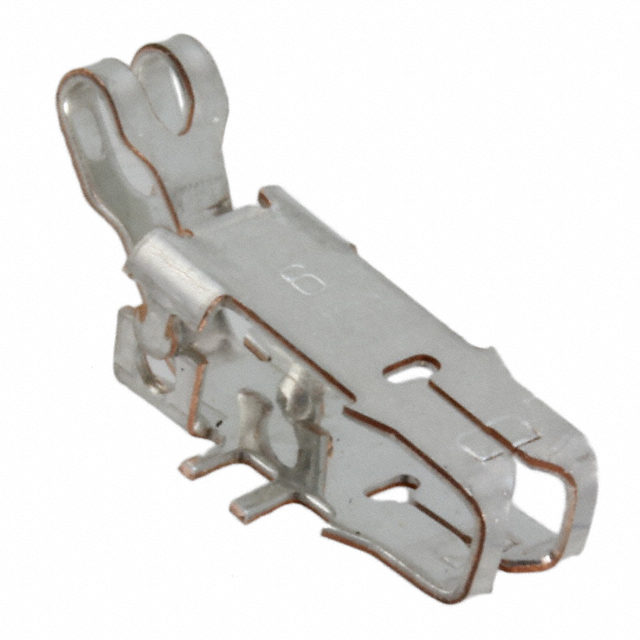

1740698-2

1740698-2

Active
TE Connectivity AMP Connectors

MAG-MATE TERMINAL W.EXTENDED LEAF-SPRING

Find alt
1740698-2

1740698-2

Active
TE Connectivity AMP Connectors

MAG-MATE TERMINAL W.EXTENDED LEAF-SPRING

Find alt

Description

General part information

MAG-MATE 300 Series

Leaf, .27 – .4 mm Magnet Wire, 30 – 26 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE 300, Magnet Wire Terminals

Technical Specifications

Parameters and characteristics for this part

Specification1740698-2
Terminal TypePoke-In, Box IDC, Box IDC/Poke-In
TerminationIDC
Wire Gauge (AWG) (Max)30 AWG
Wire Gauge (AWG) (Min)26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
